A flexible 500-series analogue EQ with four musical bands, wide boost/cut range and Tegeler transformer tone for clean shaping or bold creative moves.
£599.00(Inc VAT)
£499.17 (Ex VAT). Shipping calculated at checkout.

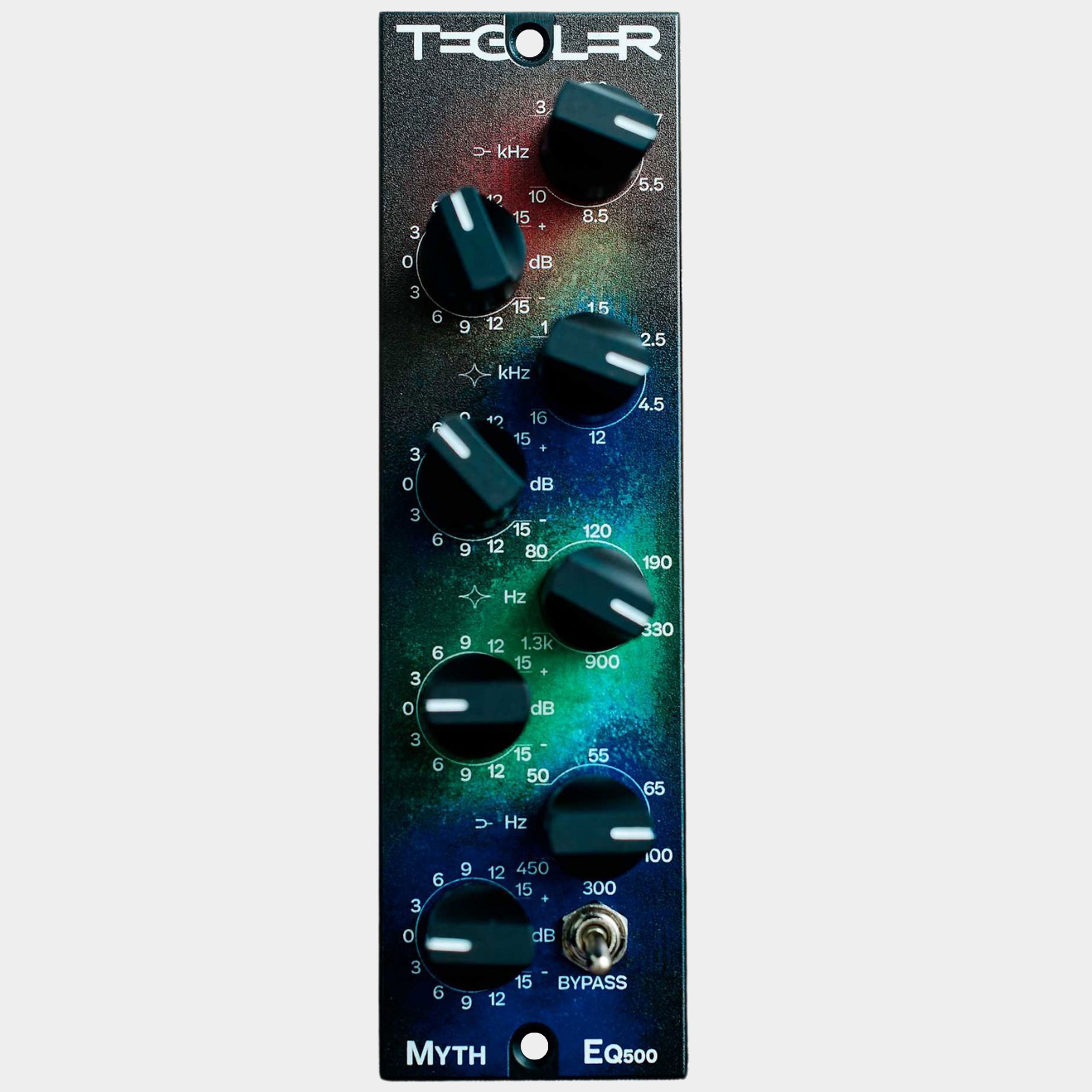

The Tegeler MythEQ 500 is a powerful 500-series mono equalizer designed to cover everything from clean, musical enhancement to bold, assertive tone shaping. Built as a more flexible and aggressive counterpart to Tegeler’s warmer passive...
Please note that, due to calculations, your monthly repayment may differ very slightly from what you were expecting. Please check your monthly repayment figure before proceeding.
Checkout with finance
To apply for finance, please add the product to your cart, proceed through checkout and select “Omni Capital” as your payment method. You will then be able to complete your application online.
Only available to UK residents over 18, subject to terms and conditions.
Credit subject to status. Missed or late payments may result in additional fees or interest and will affect your credit file and your ability to obtain credit in the future.
The Tegeler MythEQ 500 is a powerful 500-series mono equalizer designed to cover everything from clean, musical enhancement to bold, assertive tone shaping. Built as a more flexible and aggressive counterpart to Tegeler’s warmer passive EQ designs, the MythEQ 500 gives you a broad set of frequency options, a wide ±15 dB operating range and the unmistakable analogue character of Tegeler’s in-house transformers.
At the heart of the MythEQ 500 are four EQ bands: low shelf, lower-mid bell, upper-mid bell and high shelf. This layout makes it fast and intuitive to shape the fundamental weight, body, presence and top-end character of a source without overcomplicating the process. Whether you are adding punch to a kick drum, pushing a vocal forward, cleaning up low-mid build-up, bringing out attack in a snare or adding sparkle to guitars and synths, the MythEQ 500 gives you the tools to get there quickly.
Each band offers carefully chosen frequency points, allowing the MythEQ 500 to move comfortably between broad musical shaping and more focused correction. With up to 15 dB of boost or cut available, it can be subtle and refined when required, but it also has enough range to create more dramatic curves when you want a sound to really stand out.
The EQ’s behaviour becomes more focused as you push it harder, with proportional Q on the bell filters. Gentle boosts and cuts stay broad and natural, while stronger adjustments become narrower and more precise. This makes the MythEQ 500 especially useful in real-world mixing, where you may need anything from smooth tonal balancing to more targeted frequency work.
To finish the circuit, Tegeler uses its own transformers to add extra analogue depth, definition and character. These help bring control and solidity to the low end while smoothing the upper frequencies in a natural way. The result is an equalizer that feels flexible and practical, but still carries the tone and personality you expect from dedicated analogue hardware.
Compact, characterful and highly usable, the Tegeler MythEQ 500 is an excellent choice for tracking, mixing and bus processing, giving 500-series users a versatile EQ that can be clean, colourful, precise or aggressive depending on what the source needs.
Key Features: • Mono equalizer for the API 500-series format • Four-band analogue EQ design • Low shelf, lower-mid bell, upper-mid bell and high shelf filters • Wide ±15 dB boost/cut range • Proportional Q behaviour for musical broad shaping or more focused correction • Tegeler in-house transformers for added analogue character • Suitable for vocals, drums, guitars, bass, synths, stems and bus processing • Toggle switch for in/bypass operation • High band shelf frequencies: 3 kHz, 3.3 kHz, 3.7 kHz, 5.5 kHz, 8.5 kHz and 10 kHz • Upper-mid bell frequencies: 1 kHz, 1.5 kHz, 2.5 kHz, 4.5 kHz, 12 kHz and 16 kHz • Lower-mid bell frequencies: 80 Hz, 120 Hz, 190 Hz, 330 Hz, 900 Hz and 1.3 kHz • Low band shelf frequencies: 50 Hz, 55 Hz, 65 Hz, 100 Hz, 300 Hz and 450 Hz • Frequency response: 20 Hz – 40 kHz • Maximum input level: +20 dBu • Maximum output level: +21 dBu • Dynamic range: 100 dB • Standard API 500-series module size • Current consumption: 80 mA Weight: 540 g
