Furman SmartSequencing, surge protection, voltage protection and AC noise filtration
Save 22%£899.00£699.00(Inc VAT)
£582.50 (Ex VAT). Shipping calculated at checkout.
The Furman CN-3600S E is a professional 230V power conditioner and sequencer designed for commercial AV installations, studios, venues, broadcast facilities, houses of worship and complex equipment systems that need safe, reliable and controlled power...
Please note that, due to calculations, your monthly repayment may differ very slightly from what you were expecting. Please check your monthly repayment figure before proceeding.
Checkout with finance
To apply for finance, please add the product to your cart, proceed through checkout and select “Omni Capital” as your payment method. You will then be able to complete your application online.
Only available to UK residents over 18, subject to terms and conditions.
Credit subject to status. Missed or late payments may result in additional fees or interest and will affect your credit file and your ability to obtain credit in the future.

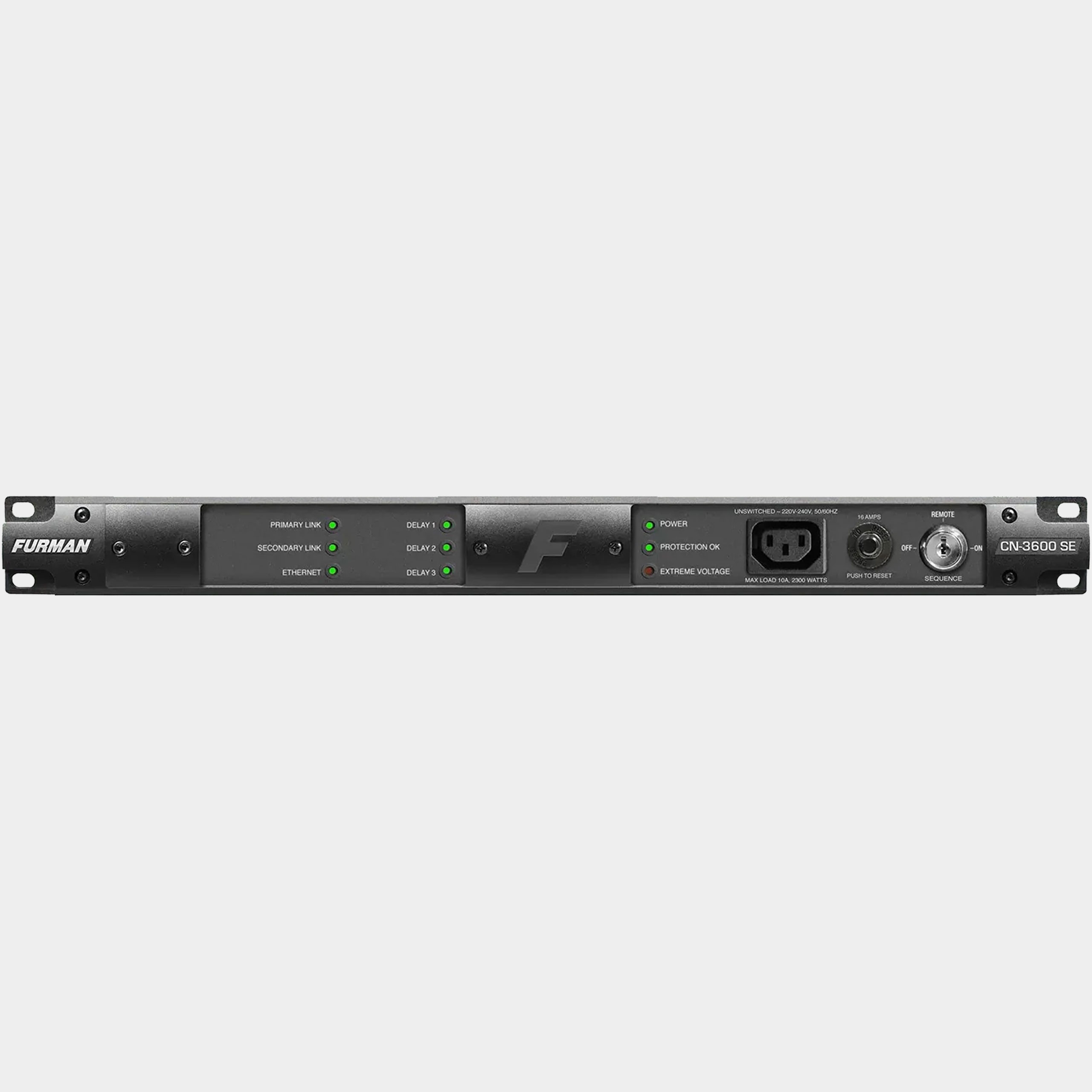

The Furman CN-3600S E is a professional 230V power conditioner and sequencer designed for commercial AV installations, studios, venues, broadcast facilities, houses of worship and complex equipment systems that need safe, reliable and controlled power management.
Built for 220–240V regions, the CN-3600S E combines Furman’s advanced power protection, AC noise filtration and SmartSequencing technology in a robust 16A rackmount unit. This allows large systems to be powered on and off safely from a single control point, reducing the risk of turn-on thumps, unstable start-up behaviour and unnecessary stress on connected equipment.
At the heart of the CN-3600S E is Furman’s SmartSequencing system, which allows multiple compatible units to communicate with each other for safe, bidirectional power sequencing. A primary unit can control secondary units across larger installations, making it ideal for multi-zone AV systems, equipment rooms and integrated control environments where technical and non-technical users need a simple, dependable way to power the system up or down.
The CN-3600S E also includes Furman’s Series Multi-Stage Protection, offering high-level surge and spike protection without sacrificial components in the signal path. Extreme Voltage Shutdown protects connected equipment from dangerous over-voltage or under-voltage conditions, while Linear Filtration Technology helps reduce AC line noise across a wide bandwidth for cleaner performance from sensitive audio, video and control equipment.
For system integration, the CN-3600S E provides RS-232 compatibility, rear-panel control connections, remote triggering options and clear front-panel diagnostic indicators. With nine total IEC outlets, including eight rear-panel outlets and one front-panel convenience outlet, it provides a practical and professional power management solution for demanding installed systems.
Key Features • 16A professional 230V power conditioner and sequencer • Designed for commercial AV, studio, broadcast and installed system applications • SmartSequencing technology for safe, controlled system power-up and power-down • Primary/secondary unit communication for multi-zone and multi-unit installations • Series Multi-Stage Protection for advanced surge and spike protection • Extreme Voltage Shutdown protects connected equipment from unsafe voltage conditions • Linear Filtration Technology reduces AC line noise across a wide bandwidth • RS-232 compatibility for integration with control systems • Eight rear-panel IEC C13 outlets plus one front-panel IEC C13 outlet • Three sequenced rear outlet pairs, each controlled by a separate relay • Front-panel keyswitch with On, Off and Remote modes • Front-panel diagnostic indicators for power, protection, sequencing and voltage status • Integrated 16A thermal circuit breaker • Suitable for 220–240V regions
Specifications • Line Voltage: 240V • AC Voltage Input Range: 180–270VAC, 50/60Hz • Maximum Current Capacity: 16A • Rear Panel Outlets: 8 x IEC C13 outlets • Front Panel Outlet: 1 x IEC C13 outlet • Sequenced Outlets: 3 x IEC C13 pairs, each controlled by a separate relay • Unswitched Rear Outlets: 1 x IEC C13 pair • Surge Protection: Furman Series Multi-Stage Protection • Spike Protection Mode: Line to neutral, zero ground leakage • Spike Clamping Voltage: 375V peak at 6,000V / 3,000A • Response Time: 1 nanosecond • Maximum Surge Current: 6,500A • Under-Voltage Protection: EVS, 175VAC ±3VAC • Over-Voltage Protection: EVS, 275VAC ±5VAC • Filtering: Furman Linear Filtration Technology • Noise Attenuation: 10dB at 10kHz, 40dB at 100kHz, 50dB at 500kHz • Control: RS-232 compatible, DB-9 connector • Remote Connections: Phoenix screw terminal connections • Keyswitch: Front-panel 3-position On / Off / Remote • Circuit Breaker: Front-panel 20A thermal breaker • Operating Temperature: 5°C to 40°C • Power Consumption: 10W with no load
