SPL BIG Studio

The SPL BiG [STUDIO] stereo-image processor: expand your soundstage with precision, warmth and professional build quality.

£1,125.00 (Inc VAT)

£937.50 (Ex VAT). Shipping calculated at checkout.

Backorder, Available To Order

Click Here to Check Stock Availability and Get Our Best Price.

Product Information
Shipping & Returns

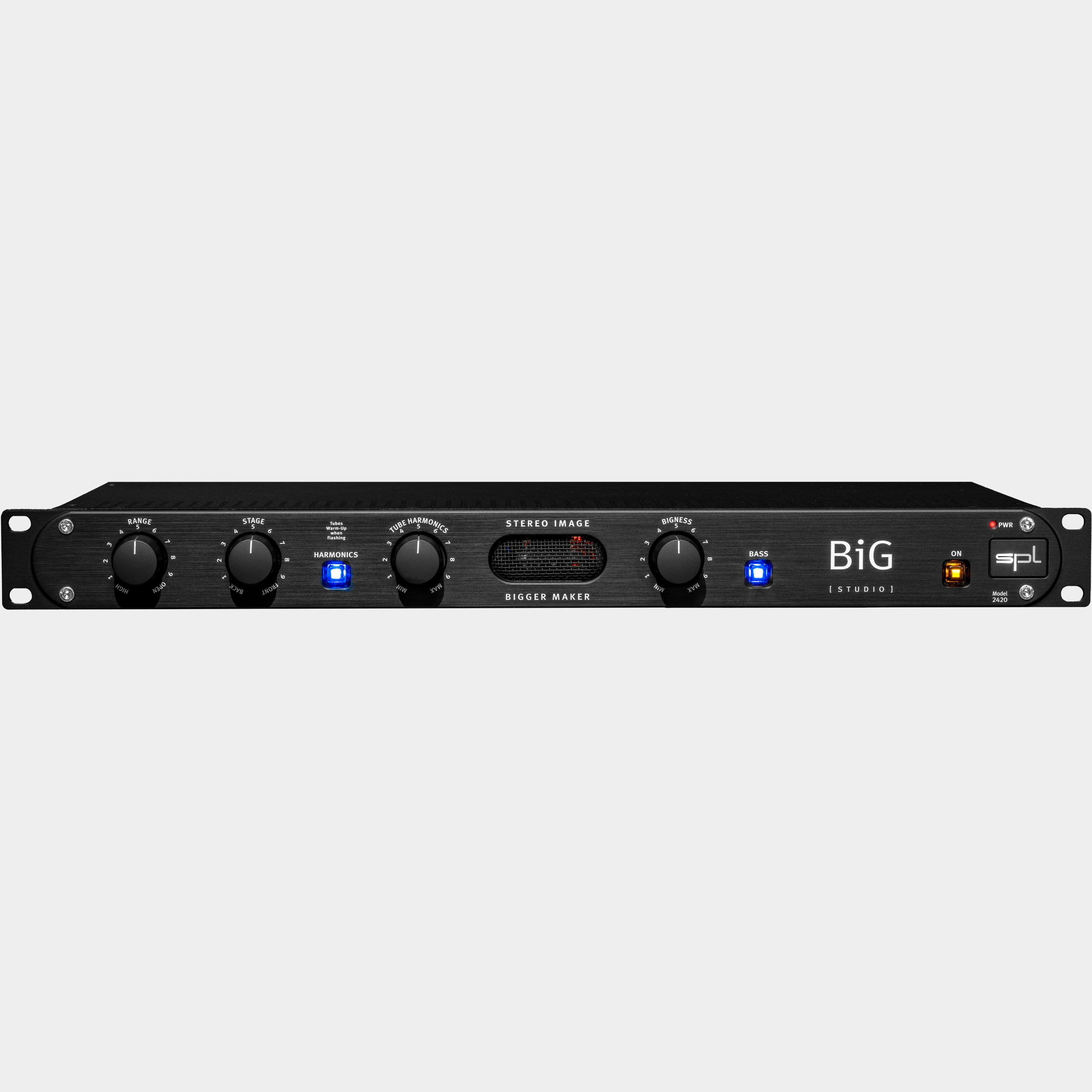

The SPL BiG [STUDIO] is a 19-inch rack-mount stereo processor that pushes your stereo image beyond conventional limits, delivering expansive width, refined mapping and studio-grade build quality. Designed for the professional studio environment, this unit brings a unique analog approach to stereo shaping — not simply M/S processing, but a fresh method of deriving a difference signal from the input, running it through an analog filter network, and blending it back into the original signal for true stereo enhancement.

At the heart of the BiG [STUDIO] is a newly-developed tube circuit. The “Tube Harmonics” section gives you control over harmonic generation, adding vivid detail and character to your signal. When engaged, the built-in tube warm-up phase ensures optimal operating conditions before the harmonic effect kicks in. Complementing this, a dedicated Bass Switch circuit adds a subtle low-end lift, ideal for giving your processed stereo signal more foundation without resorting to heavy EQ boosts.

The front-panel controls — Range, Stage and Bigness — give you intuitive control over what frequencies are processed, how they’re positioned across the stereo field, and how strongly the effect is applied. Range lets you define the frequency band targeted, Stage shifts that band forwards or backwards in the stereo stage, and Bigness determines the intensity of the stereo imaging. When summed to mono, the processed signal remains phase-clean with no cancellation issues—making it safe for broadcast or multi-format mix workflows.

Inside, the BiG [STUDIO] maintains +/-18 V internal audio voltage and uses fully balanced inputs and outputs (XLR and TRS in parallel) to deliver maximum fidelity. Its frequency response spans an impressive 10 Hz to 200 kHz (-3 dB) with THD+N at just 0.0035% and A-weighted noise floor at -97.5 dBu. Encased in a rugged housing with a 4 mm black-anodised aluminium front panel and aluminium knobs, the unit reflects SPL’s German-manufactured heritage and commitment to quality.

Whether you are working on music production, mastering or high-end stereo projects, the BiG [STUDIO] offers creative flexibility and sonically transparent enlargement of the stereo image — all while fitting neatly into your 19″ rack. Manufactured in Niederkrüchten, Germany, it brings studio-grade precision and character to your stereo workflow.

Specifications
• Balanced XLR & TRS inputs/outputs (parallel connection) with gold-plated contacts
• Max input/output gain: +22.5 dBu
• Input impedance: 20 kΩ; Output impedance: 112 Ω
• Frequency range: 10 Hz–200 kHz (-3 dB)
• THD + N (0 dBu, 10 Hz–22 kHz): 0.0035%
• Noise (A-weighted): -97.5 dBu
• Dynamic range: 120 dB
• Bass-boost frequency: 42 Hz; boost: +2 dB
• Internal audio voltage: ±18 V
• Internal linear power supply with shielded toroidal transformer
• Mains voltage selectable: 230 V AC / 50 Hz or 115 V AC / 60 Hz
• Power consumption: max. 9.9 VA
• Dimensions (W × H × D): 482 × 44 × 210 mm (19″ / 1 U)
• Weight: 3.85 kg (shipping weight approx. 4.9 kg)
