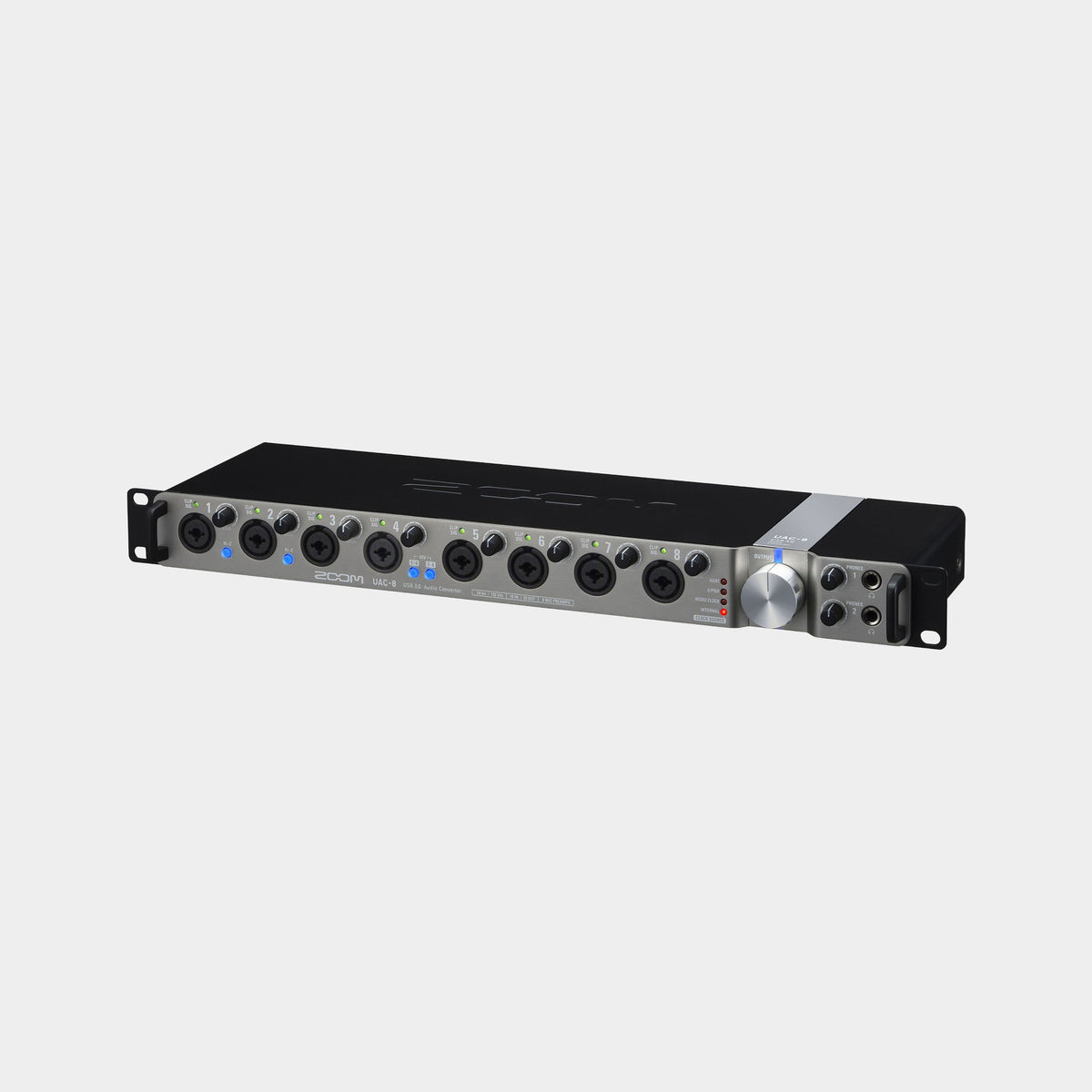

Zoom UAC-8 USB 3.0 Audio Converter

The Zoom UAC-8 is a rackmount USB 3.0 audio interface for studios that need to record several microphones and keep a wider collection of equipment connected. Eight microphone-capable inputs provide a substantial analogue starting point, while digital connections expand the system for larger sessions. Multiple outputs support monitoring and external routing, making it useful for bands, project studios and musicians who have outgrown a small desktop interface. Its role is to become the connection centre of the studio, so microphones, instruments and monitoring paths can be organised around a repeatable recording workflow.

Eight preamps for a live recording foundation

The eight XLR/TRS combination inputs accept microphones and compatible line sources. This gives you enough analogue inputs for a small band, a detailed instrument setup or several simultaneous speakers. Inputs with supported Hi-Z operation accommodate suitable direct instrument connections. Before a session, assign the microphones in a clear order and establish sensible input gain for the loudest expected playing. Keeping a consistent channel layout helps musicians get started quickly and makes the recording software easier to navigate when you return to edit the performance.

Digital expansion grows with the session

ADAT optical and S/PDIF connections provide additional digital audio channels with compatible external equipment. At 44.1kHz and 48kHz, the UAC-8 offers up to eighteen inputs and twenty outputs in total. Higher sample rates reduce the available ADAT channel count, so the maximum input total and maximum 192kHz sample rate are not simultaneous specifications. Plan expansion around the rate and number of channels the session actually needs. For a larger microphone setup, retaining more channels at a conventional project rate can be more useful than selecting the highest available rate.

Outputs make monitoring part of the system

Ten analogue line outputs and two headphone connections provide scope for different listening and routing arrangements. A studio might use outputs for the main speakers, performer cue feeds or compatible external equipment. The available connectors are only the starting point; the useful part is deciding which signal belongs at each destination. Label the output paths and check them at the receiving device before recording. That helps prevent an unexpected loud feed, a missing cue signal or a performer hearing the wrong balance when the session begins.

Keep digital devices working together

Word-clock and digital-audio connections support synchronisation with suitable equipment, while MIDI input and output connect traditional MIDI devices. A multi-device digital system needs a coherent clock arrangement so that the connected units agree on timing. Choose the intended clock source, set the matching sample rate and test the complete system before a critical recording. Once configured, a repeatable setup can make a larger studio feel straightforward: microphones arrive on known channels, digital expansion behaves predictably and performers receive the same dependable monitoring paths from session to session.

A rack interface for an organised studio

The UAC-8 supports conventional audio recording up to 24-bit/192kHz and offers standalone operation for supported uses. Its 1U rack format suits a fixed or portable studio rack. Because computer compatibility depends on the operating system and available driver support, check the exact intended computer setup before choosing it as the centre of a studio. For users whose requirements match that environment, the UAC-8 combines a generous analogue front end with digital expansion and output flexibility, providing the connections needed to record a fuller session and keep the studio ready for the next one.
