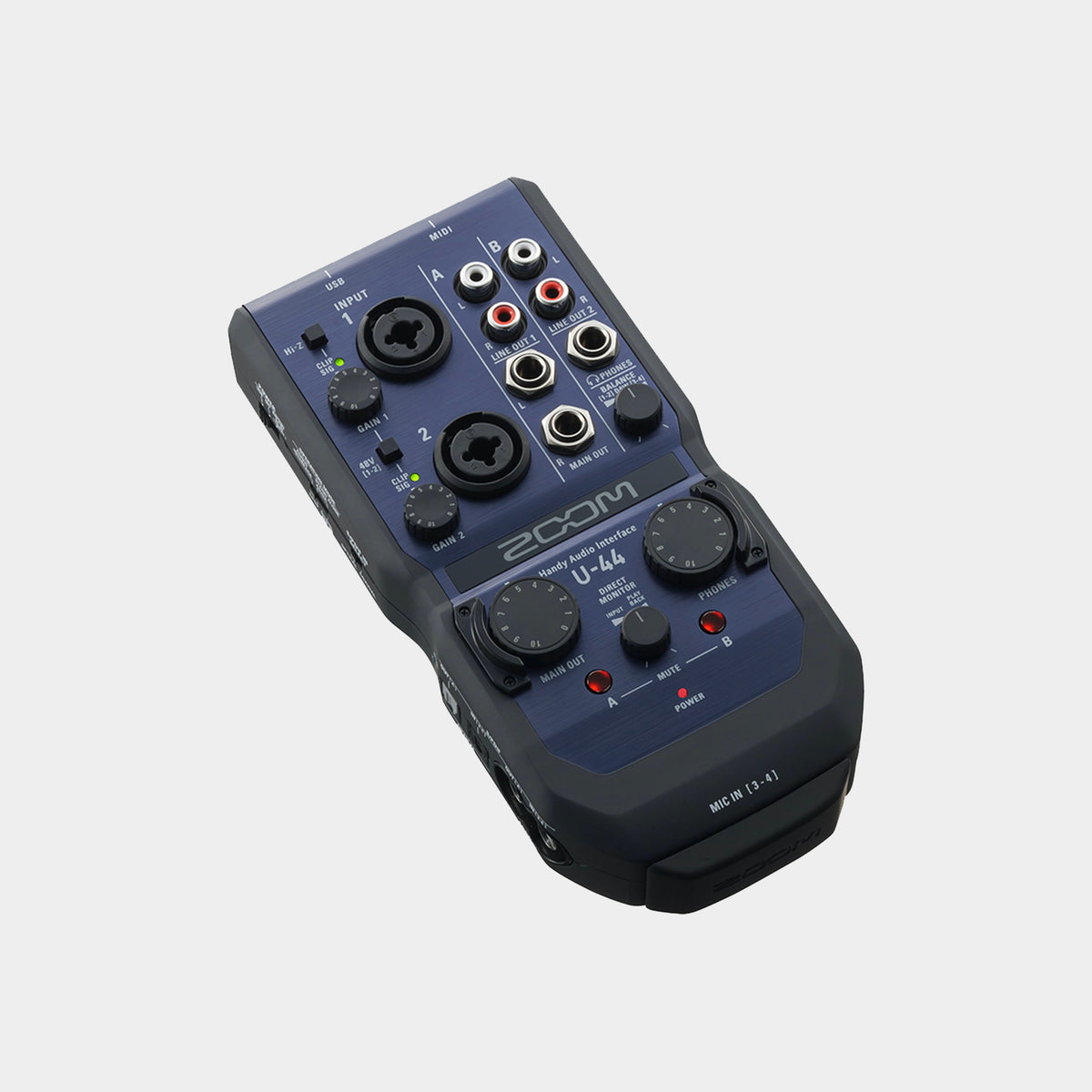

Zoom U-44 Handy Audio Interface

The Zoom U-44 is a portable audio interface for musicians and recordists whose connections change from session to session. Alongside microphone inputs, it provides digital audio, MIDI and a connection for compatible Zoom microphone capsules. That makes it more adaptable than a basic two-input interface when you need to integrate existing equipment or create a compact recording setup. It can serve a microphone-led session, connect digital devices or become a portable stereo microphone system with an appropriate optional capsule, all within a unit designed to travel with the rest of the kit.

Start with microphones and instruments

Two XLR/TRS combination inputs provide microphone preamps and connections for suitable line sources, with a Hi-Z option on input 1 for a compatible direct instrument connection. Phantom power supports suitable condenser microphones. This gives a straightforward starting point for recording voice and guitar, two interview microphones or a stereo pair. Keep sources separate in the software when you expect to adjust their balance later. A good input recording gives you options; blending everything into one signal too early can make a simple correction unnecessarily difficult during mixing.

Four input channels, several ways to use them

The U-44 is a four-input, four-output interface, but it does not provide four identical analogue microphone sockets. Its additional input possibilities include compatible capsule and digital connections within the supported routing. That distinction matters when planning a session. A stereo digital feed and two analogue microphones may suit one job, while another might call for an optional Zoom capsule. Decide which sources need to be used simultaneously and confirm the corresponding mode before recording. The flexibility comes from the range of connection types rather than a larger bank of identical preamps.

Digital audio can keep compatible equipment connected

Optical and coaxial S/PDIF facilities provide ways to exchange stereo digital audio with suitable equipment. Digital connections require compatible sample-rate and clock settings, so both devices need to be configured as a working pair. When set up correctly, this can integrate a digital processor or other source without taking an unnecessary route through extra analogue conversions. The U-44 also supports standalone analogue-to-digital and digital-to-analogue conversion modes, giving it uses beyond its normal role as a computer interface. It can therefore remain useful when the rest of the recording setup changes.

MIDI and capsule support broaden the creative setup

MIDI input and output connect compatible instruments and controllers that use traditional MIDI cabling. The original-generation Zoom capsule connector accepts supported microphone capsules, allowing a suitable optional capsule to provide another recording approach. Capsule System 3.0 accessories for newer recorders are not automatically compatible. These facilities can simplify a small rig by bringing several types of connection together, but the best setup is still the one that remains understandable. Label the sources and establish a repeatable routing arrangement before an important session.

Portable recording with a deliberate workflow

The U-44 supports audio up to 24-bit/96kHz and can operate from two AA batteries or supported USB power. Monitoring and output controls help you connect headphones and suitable listening equipment. As with any interface, check the connected computer or mobile device, software and driver requirements before building the system around it. Choose the U-44 when a compact interface needs to do more than accept two microphones: its combination of analogue, digital, MIDI and capsule connectivity makes it a flexible bridge between different parts of a portable recording kit.
