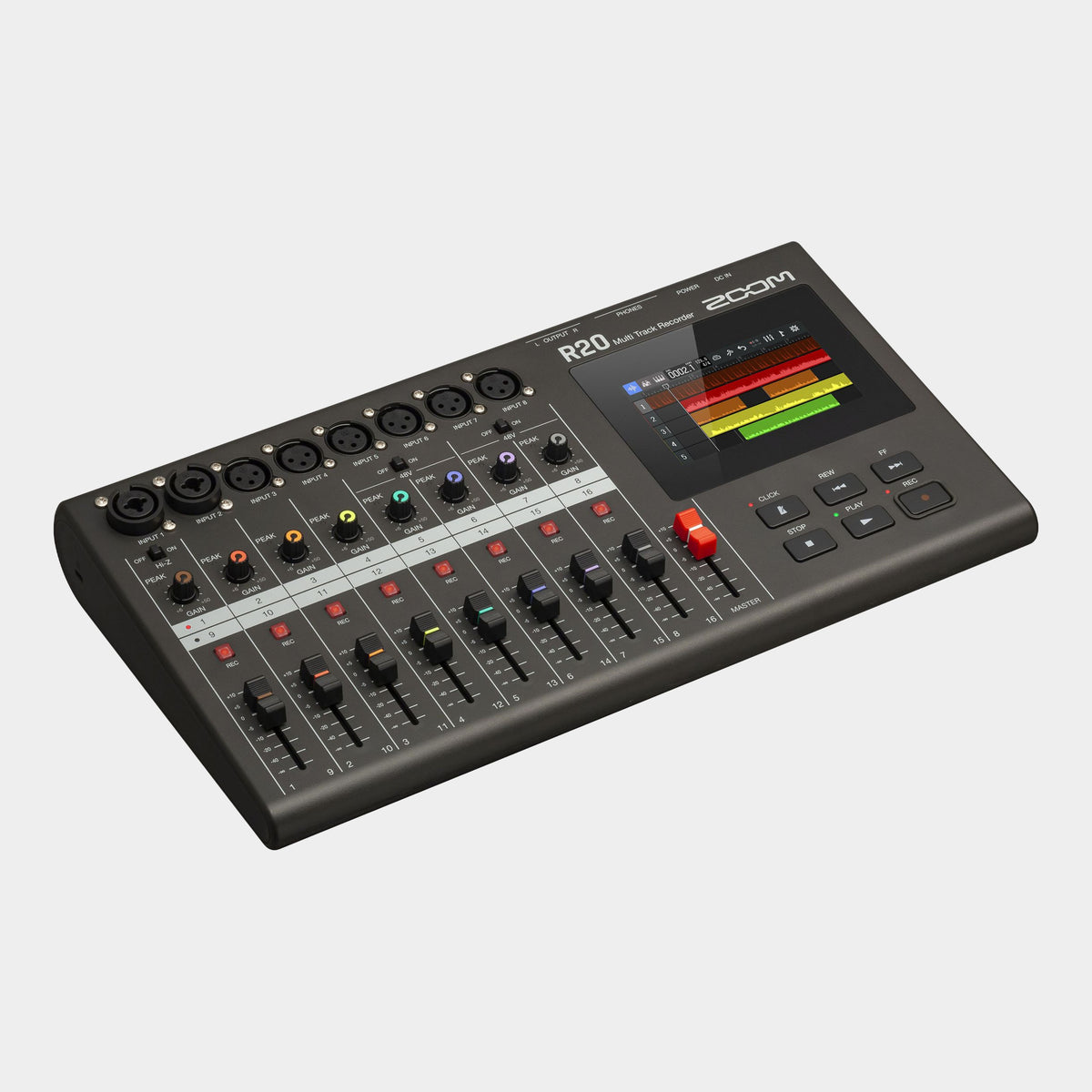

Zoom R20 MultiTrak Multi Track Recorder

The Zoom R20 MultiTrak is a standalone recording workstation for musicians who want to capture a session and continue developing it in the same place. Eight simultaneous recording inputs make it capable of handling a small band or a more detailed microphone setup, while 16-track playback leaves room for overdubs and arrangement. A large touchscreen shows the project visually, and physical faders keep the mix immediate. It is a useful middle ground between a simple recorder and a computer-based studio, with the core tasks of recording, editing and balancing brought into one dedicated device.

Record several musicians together

The input section combines six XLR sockets with two XLR/TRS combination sockets. That allows up to eight sources to be recorded at once, whether you are capturing individual band members or several microphones around an instrument. Input 1 offers a Hi-Z option for a suitable direct guitar connection. Phantom power is available on inputs 5–8 in pairs, so plan condenser-microphone connections accordingly rather than assuming it is available on every socket. A clear input plan before the session helps the musicians begin playing sooner and avoids rearranging cables after the balance has been established.

Keep room for the next idea

With 16 playback tracks, the R20 can retain a live foundation and add further parts afterwards. A band might record rhythm instruments together, then overdub vocals, harmonies and additional textures. Keeping the parts separate makes it easier to adjust the arrangement without repeating the whole performance. The touchscreen timeline gives you a visual understanding of where material sits, while the faders provide a direct way to hear how the parts relate. That combination can make recording feel like an extension of arranging rather than a separate technical task.

Built-in musical tools support the session

The R20 includes effects, rhythm patterns and synthesizer sounds for developing ideas beyond the first take. The rhythm library can establish a groove for songwriting or provide a reference while a part is being rehearsed. Processing can help a rough recording communicate the intended sound before it moves elsewhere for finishing. Use these tools to make musical decisions: whether a section needs a stronger pulse, whether a part should be drier and closer, or whether a new texture improves the song. The aim is a convincing arrangement, not simply using every available track.

A straightforward recording format and monitoring process

The recorder works at 44.1kHz with 16-bit or 24-bit audio. Set input levels with enough headroom for the loudest performance and listen to each microphone before recording the full band. With several live microphones, placement and spill become part of the sound, so a short group test is more revealing than checking each source in isolation. Establish a comfortable headphone or monitoring balance for the musicians. When performers can hear themselves and the timing reference clearly, they are better able to deliver the take the recording system is there to preserve.

Connect to a computer when the project needs it

Current R20 USB audio operation provides eight inputs and four outputs with compatible software, extending its use beyond standalone recording. The unit uses its dedicated power supply rather than USB bus power, which should be considered when planning a mobile setup. Optional supported wireless control adds another operating approach with the appropriate adapter. Choose the R20 if you want to record several sources together, build a fuller arrangement through overdubs and work with visible, hands-on controls before deciding whether the project needs the wider possibilities of a computer studio.
