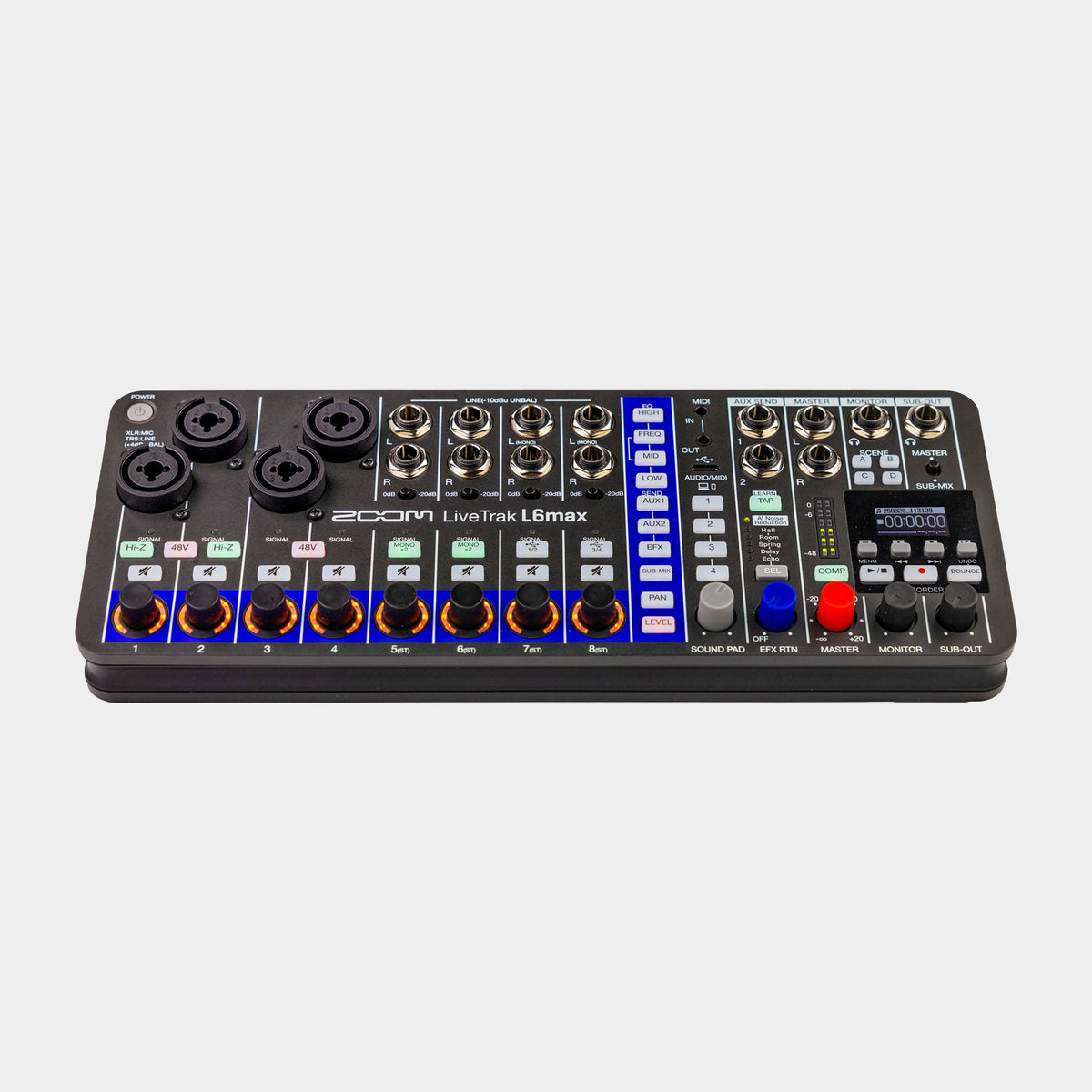

Zoom LiveTrak L6max 12-Channel Mixer & Recorder

The Zoom LiveTrak L6max is a compact mixer and recorder for setups that need room for both microphones and stereo instruments. It can sit at the centre of a songwriting desk, electronic performance rig or small recording session, keeping the sources connected and ready to play. Four microphone-capable channels give it more flexibility for voices and acoustic instruments, while the stereo line channels suit synthesizers and other equipment. The attraction is a complete working process: balance the session, shape the sound, record the separate parts and return to the mix when the performance is over.

More microphone inputs without abandoning stereo gear

Four XLR/TRS combination input channels sit alongside four stereo line-input channels, giving twelve input channels in total. Two combination inputs offer Hi-Z support for suitable direct instrument connections. That layout can accommodate several microphones and a collection of stereo devices within one compact system. The line-channel pads help manage stronger signals from connected equipment. Before recording, match each source to the appropriate input type and level; a well-organised connection plan makes both the live mix and the resulting files easier to understand.

Keep a useful record of every session

The L6max records twelve input channels plus a stereo mix, providing 14 tracks at 48kHz in 32-bit float. The stereo mix preserves what you heard during the performance, while individual recordings let you revisit balance and processing afterwards. This is valuable for an electronic jam, where an inspired take may include a few mix decisions you would like to refine. Float files provide broad level-adjustment latitude in compatible software, but a distorted instrument output remains distorted. Set the connected equipment sensibly and use the recorder's flexibility to retain options, not to ignore the source signal.

Monitoring that supports collaboration

Two headphone outputs and a custom stereo submix give you more scope to provide a useful listening balance. A performer may need more of their own instrument, while the person recording needs to hear the overall result. Separating those needs can improve the performance and reduce repeated interruptions. Two auxiliary sends, with supported pre- or post-fader operation, also make it possible to organise external effects and other feeds around the session. Thinking about who needs to hear what is often as important as deciding how many input channels the mixer should have.

Tools for shaping and developing the performance

Onboard EQ and six effects help place instruments within the mix, while scene memories provide repeatable starting points. The OLED display supports navigation and recording tasks. Overdub and bounce functions extend the recorder beyond simply documenting a live pass, allowing a performance to develop through additional layers. Four sound pads add a way to trigger prepared material, and the AI noise-reduction function offers another tool for suitable sources. Apply processing with the musical or spoken result in mind, then compare it with the untreated sound before committing to a strong setting.

A hub for portable and computer-based work

The L6max operates as a 14-input, four-output USB audio interface, so the same connected sources can participate in a compatible computer recording setup. Four AA batteries or USB power support different working locations, while optional ERL-6 mounting hardware provides a supported rack-integration route. For musicians who move between jamming, recording and production, the L6max offers a useful continuity: the instruments remain connected, the monitoring can suit the players and the separate files preserve the best moments for a more polished finish.
