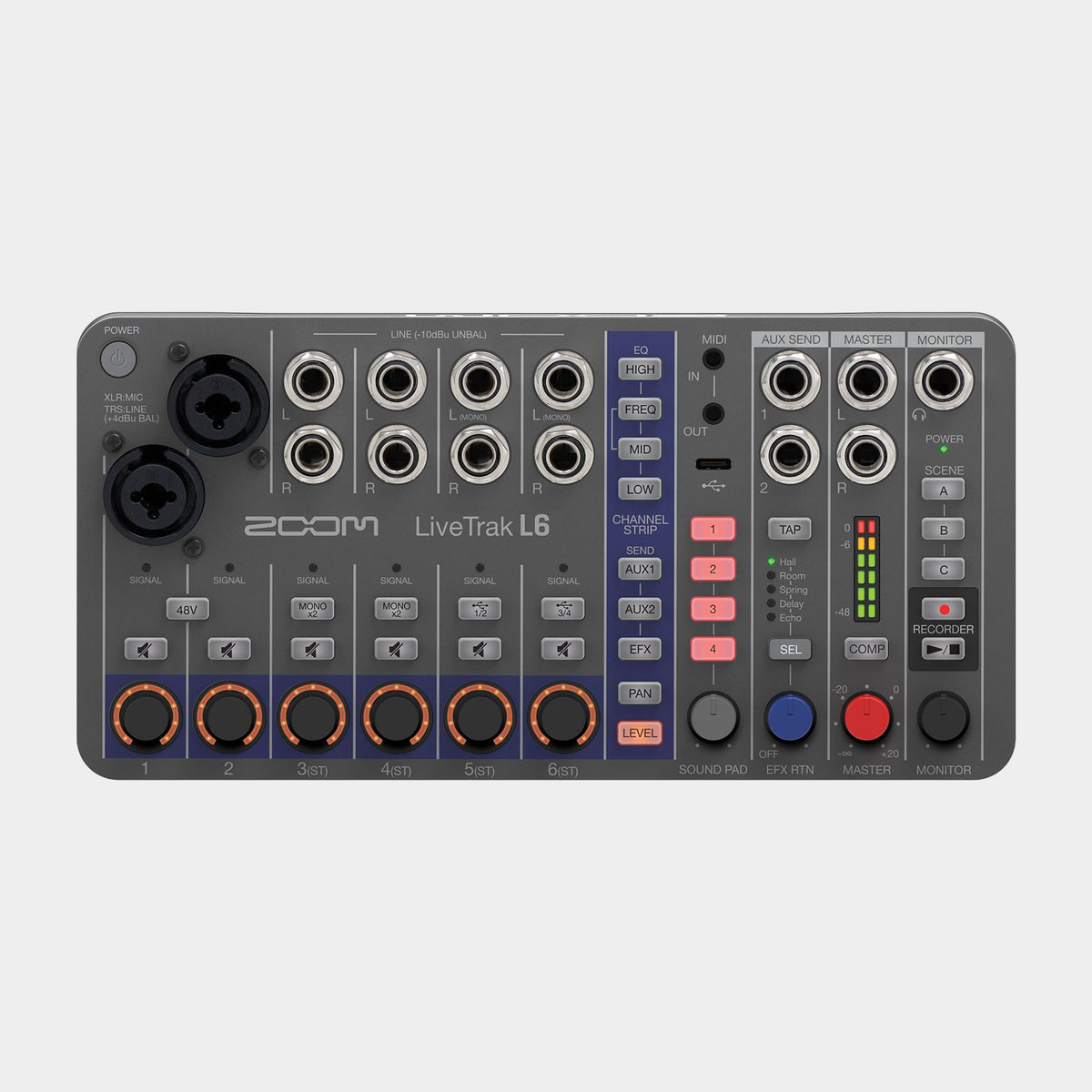

Zoom LiveTrak L6 10-Channel Mixer & Recorder

The Zoom LiveTrak L6 is a compact digital mixer and recorder for musicians who want to keep several sound sources connected and make something with them. It is particularly well suited to a small electronic setup, a songwriting space or a portable performance rig, where stereo instruments need as much attention as microphones. You can balance the sources, add effects and record the session without making a computer the centre of the performance. When a spontaneous jam turns into a promising idea, the separate recordings remain available for a more deliberate mix later.

A channel layout that welcomes stereo instruments

The L6 provides two mono XLR/TRS input channels and four stereo line-input channels, giving ten input channels in total. That arrangement makes sense for keyboards, drum machines and other stereo equipment, with space for microphones alongside them. Think about the setup in terms of mono sources and stereo pairs rather than simply counting sockets. A stereo synthesizer can keep its spatial effects intact, while a microphone can remain centred and clearly controlled. The compact layout helps keep a small desk or performance area manageable without forcing every instrument into a mono feed.

Record the parts as well as the performance mix

The onboard recorder captures the ten input channels and the stereo mix as a 12-track, 48kHz, 32-bit float recording. A stereo mix gives you an immediate record of the performance, while separate channels allow more detailed balancing afterwards. If a bass part overwhelms a section or an effect becomes distracting, you have more options than you would with only a finished two-channel file. Float recording provides substantial level-adjustment latitude in compatible software, although it cannot repair distortion already present in an instrument or microphone signal.

Shape the sound without dismantling the flow

Channel EQ includes a sweepable midrange, allowing you to choose which part of the middle frequencies needs attention rather than adjusting a fixed band alone. This can help separate instruments that compete for the same space. Two auxiliary sends provide ways to involve external effects or other destinations, and onboard effects add ambience within the mixer. For a live electronic performance, these controls become part of the instrument: bring in a delay for a transition, thin a crowded texture or leave room for a vocal without stopping the session.

Pads, scenes and MIDI support a repeatable performance

Four sound pads provide a way to trigger prepared audio, while scene memories can recall mixer settings for different starting points. MIDI connectivity adds options for integration with a compatible electronic setup. These features are useful when a performance needs both spontaneity and structure. You can prepare a dependable baseline, then make musical changes in the moment. Keep the arrangement understandable and test transitions in advance, especially when several instruments and effects are involved; the most useful saved setup is one you can confidently return to while playing.

A small mixer with several working roles

The L6 also functions as a 12-input, four-output USB audio interface, allowing its inputs and recording workflow to connect with compatible computer software. Four AA batteries or USB power support portable and fixed arrangements. An optional ERL-6 mounting solution provides a route into a suitable Eurorack setup. Choose the L6 when you want a compact hub that lets instruments stay connected, performances stay fluid and recordings stay editable. It gives a small creative space a practical place to mix, experiment and keep the results.
