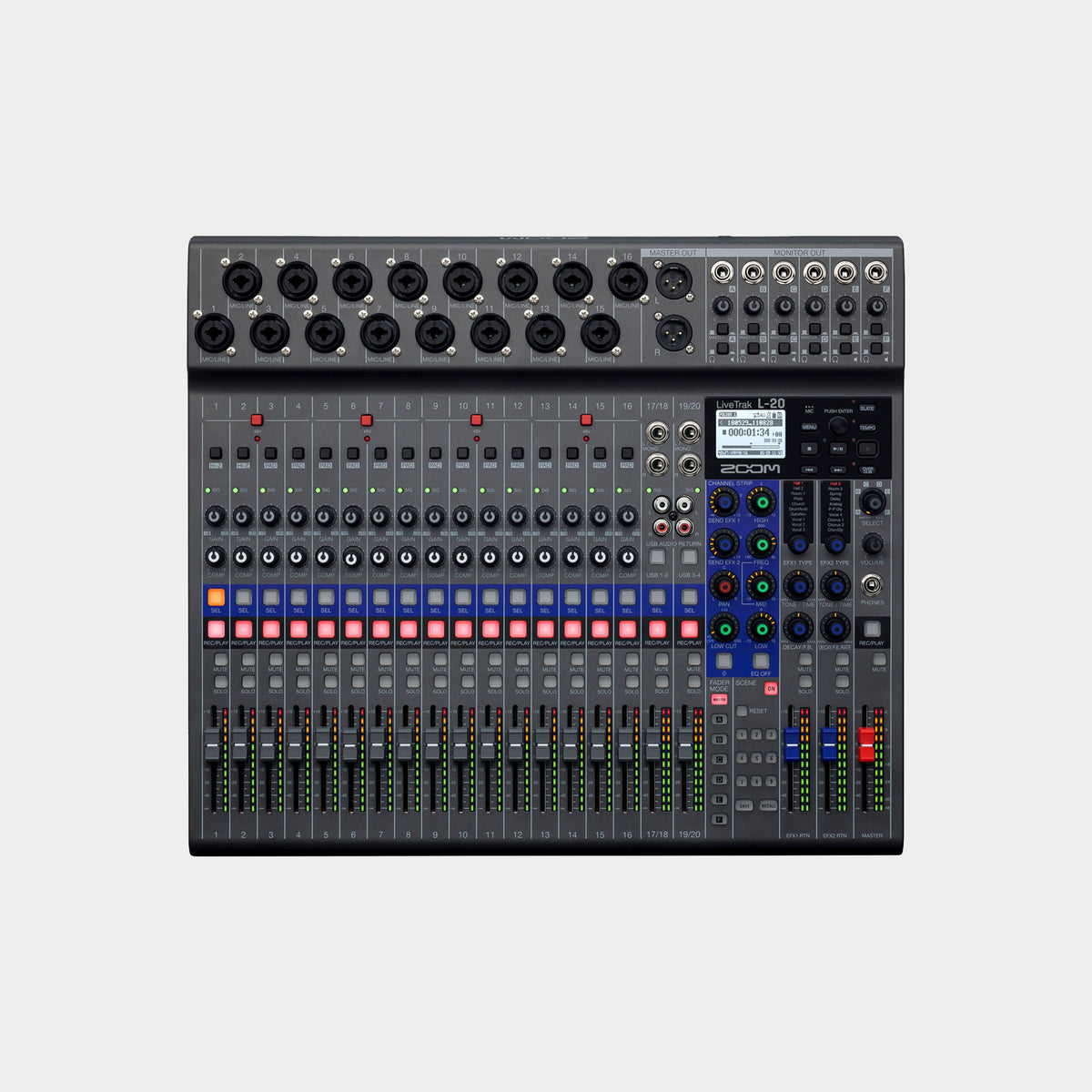

Zoom LiveTrak L-20 Digital Mixer and Recorder

The Zoom LiveTrak L-20 is designed for sessions where several musicians need to be heard, recorded and given a useful monitor mix at the same time. Its twenty input channels make room for a more substantial band or ensemble, while onboard recording captures individual sources alongside the stereo mix. Physical faders provide a familiar way to work during rehearsal or performance. For a project studio, venue or band building its own recording setup, it offers a central place to manage the session without making a computer necessary for every recording.

Inputs for a fuller arrangement

Sixteen mono microphone/line channels and two stereo pairs provide the L-20's twenty input channels. That gives you scope for a drum microphone setup, several voices and instruments, plus stereo equipment such as keyboards or playback sources. Before connecting everything, decide which sources need individual control and where stereo information should be preserved. A clear channel order makes live adjustments quicker and the resulting recordings easier to navigate. More channels are most useful when they support a deliberate recording plan rather than simply adding microphones that duplicate the same sound.

A personal mix for each performer

Six custom monitor mixes let musicians hear different balances, with an additional headphone path for the engineer. This is a major advantage over distributing one identical mix to everyone. A drummer may need a strong rhythmic reference, a singer may need more vocal detail and a keyboard player may want less of a nearby amplifier. These preferences can be accommodated without forcing the main mix to change. A short monitoring check with the whole group playing is valuable, because a balance that works for one instrument alone may feel very different during the full performance.

Preserve the individual parts and the live balance

The L-20 records up to twenty input tracks plus a stereo mix, giving 22 recording tracks at supported settings. The stereo file documents the mix you made during the session, while the individual files allow a more detailed production afterwards. You can change the balance, edit a part or apply different processing to each source without being limited to a finished two-channel recording. Conventional 24-bit recording means input gain and headroom still matter. Ask musicians for their loudest expected passages and check the levels before the take rather than relying on later processing to repair overloads.

Choose the sample rate for the workflow

Standalone recording supports sample rates up to 96kHz, but the highest-rate mode restricts functions including EQ, effects, overdubbing, USB audio and custom monitor-fader operation. For a session that depends on those facilities, 44.1kHz or 48kHz may be the more practical choice. The USB interface provides 22 inputs and four outputs at those supported lower rates. This is why the most useful setting is the one that supports the whole session, rather than simply the largest number on the specification sheet.

Repeatable mixing with room to refine

Channel processing, onboard effects and scene memories help you build and return to useful starting points. Optional BTA-1 wireless control provides another way to adjust the mix with supported devices. Once a good setup is established, the L-20 can serve rehearsals, live capture and later production with a consistent channel layout. Choose it when your sessions need a generous input count and genuinely separate performer monitoring. It combines the immediacy of a physical mixer with recordings that leave room for a more polished balance after the musicians have finished playing.
