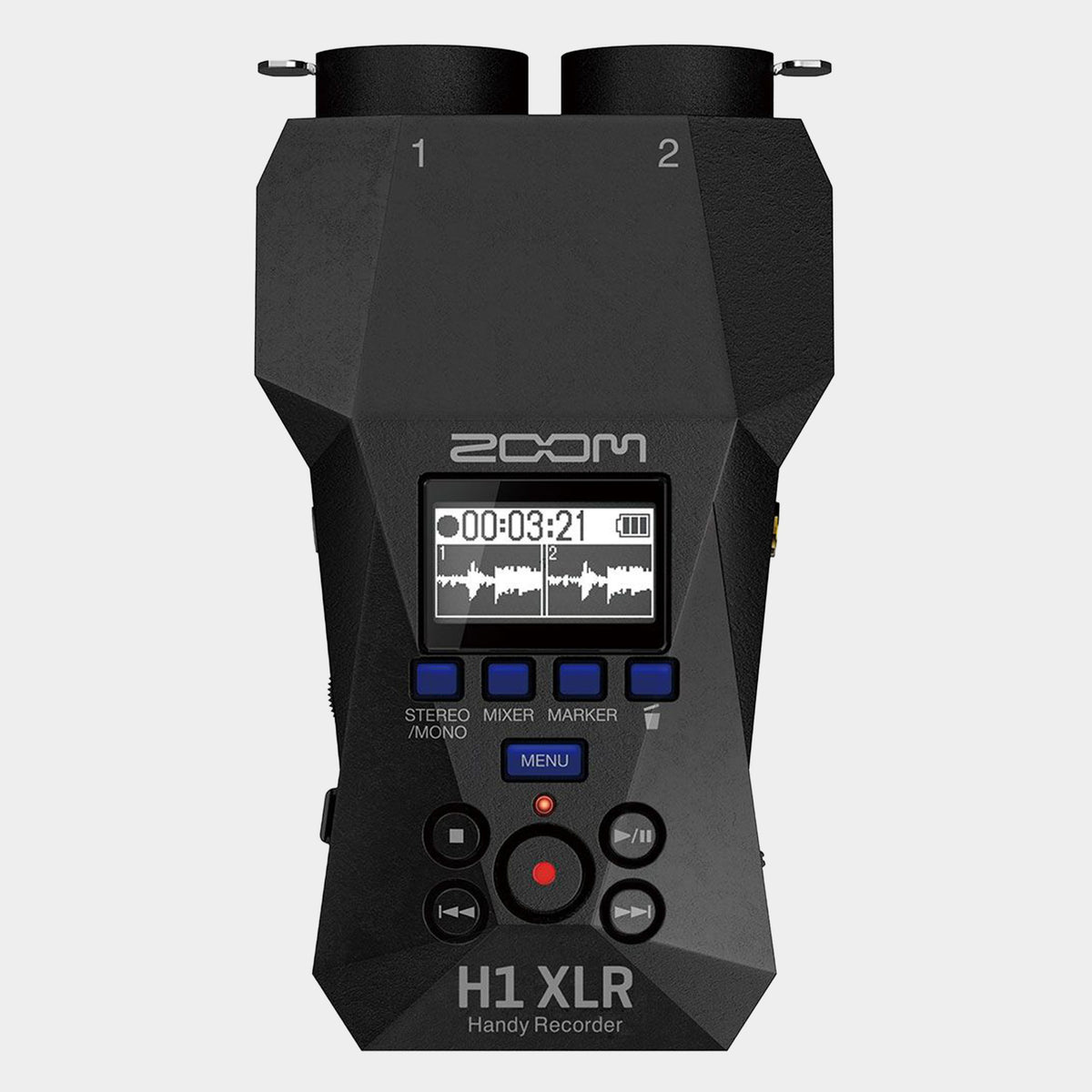

Zoom H1 XLR Handy Recorder

The Zoom H1 XLR is a compact recorder for people who already know which microphone they want to use. Instead of built-in microphones, it provides two XLR/TRS inputs for external sources, making it a practical way to capture interviews, a stereo microphone pair, a mixer feed or a small music session. It is particularly appealing when the recorder needs to fit around an existing kit. Put the microphone where the sound is best, keep the recorder somewhere convenient, and preserve separate channels for the edit.

Two inputs with several practical uses

The combination sockets accommodate XLR microphones and compatible jack-connected sources. Available 48V phantom power supports suitable condenser microphones, while microphone and line-level use lets the recorder serve different jobs. For an interview, connect one microphone per speaker. For a live event, take an appropriate feed from the mixing desk. For acoustic music, connect two microphones and experiment with positioning. Matching the input setting and cable connection to the source remains important, particularly when receiving a stronger line-level signal from another piece of equipment.

Keep each source under your control

Recording two channels separately gives you useful choices after the session. You might reduce one interview microphone when its speaker is silent, correct a level difference between two instruments, or work with a stereo pair as a coherent image. The advantage is not just the number of sockets: it is the ability to avoid committing every balance decision at the recording stage. With an external microphone setup, you can also choose a pickup pattern and working distance that suit the room, rather than relying on the recorder's physical position.

32-bit float for changing levels

The H1 XLR records 32-bit float audio at sample rates up to 96kHz. Compatible editing software allows extensive level adjustment afterwards, which is useful for interviews, unpredictable performances and location work. It reduces the pressure to chase every change in volume during a take. That flexibility applies to the captured signal; it does not correct distortion produced by an overloaded microphone or a mixer output driven too hard. Listening through headphones and checking the source equipment still play an important role in making a recording you can confidently use.

Small connections can be useful too

An alternative 3.5mm stereo input accommodates appropriate miniature microphone or line sources, with plug-in power available for compatible microphones. This is an alternative input arrangement, not an additional pair of channels that turns the recorder into a four-input system. That distinction matters when planning a setup. The headphone connection provides a way to check the actual recording path, and a short monitored test can reveal incorrect cable wiring, unexpected background noise or a source feeding only one side before an important session begins.

A portable recorder with a computer role

Two AA batteries or USB power make the H1 XLR practical for mobile and fixed use. Audio is stored on microSD, so standalone recording does not depend on a laptop. USB interface operation provides a two-input, two-output connection at supported 44.1kHz and 48kHz settings for compatible devices. If you need a small recorder for your own microphones rather than an all-in-one stereo microphone system, the H1 XLR offers a focused solution: straightforward connections, editable separate channels and a recording format that gives changing sound levels more room to breathe.
