Wes Audio NG 500 Mixing Bundle

The Ultimate 500 Series Mix Buss Bundle

The Wes Audio Mix Buss Bundle is the ultimate mix buss bundle for your hybrid studio.

All of the Wes Audio products within this package are equipped with the "NG500" control protocol meaning each unit can be remote controlled, automated or recalled from your DAW!

When housed within the Wes Audio Titan 500 series Chassis, these units can all be controlled by a single USB connection on the rear and audio from each of the 500 series units can be routed to and from the Wes Audio _Caplyso AD/DA converter.

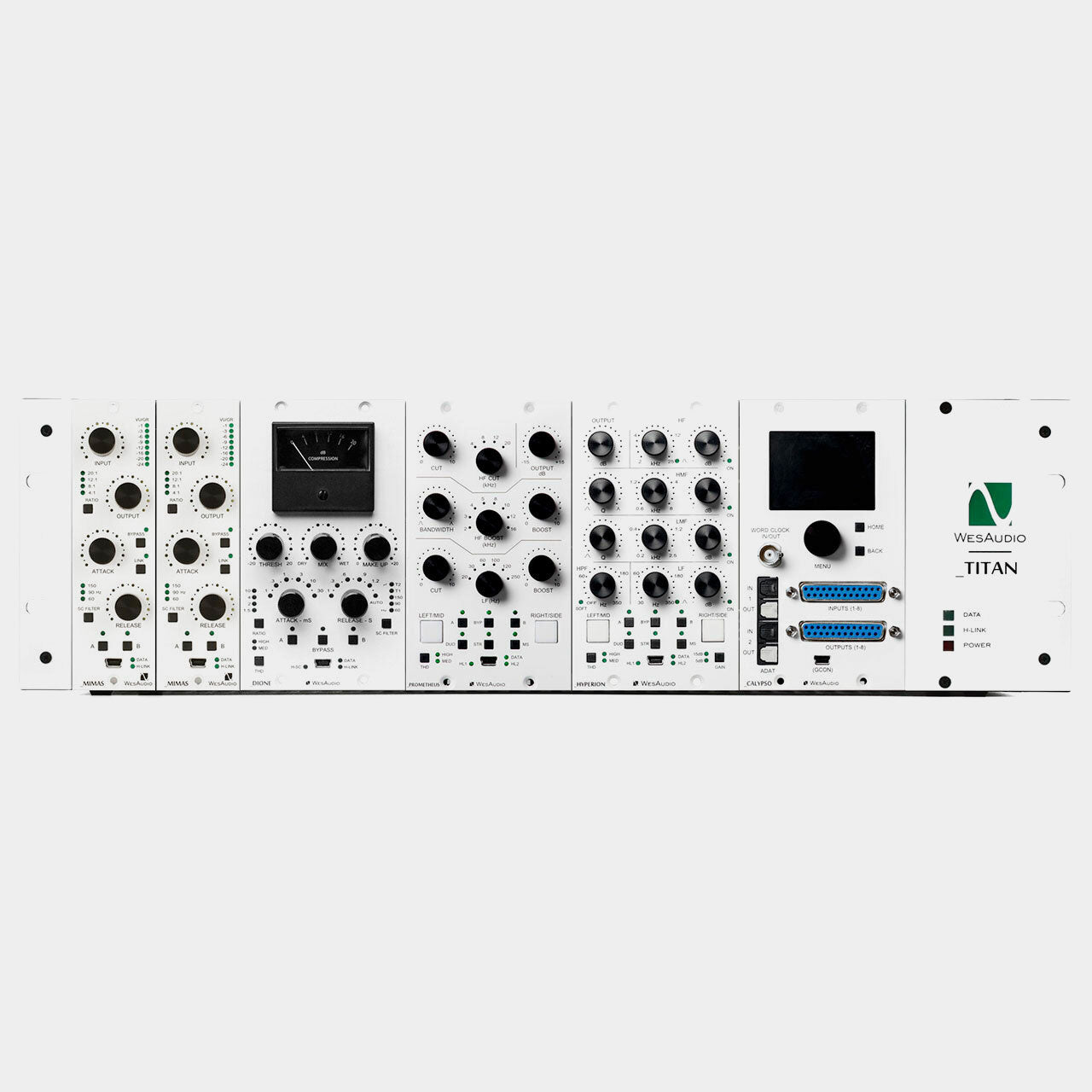

The Mix Bundle contains -

_Titan

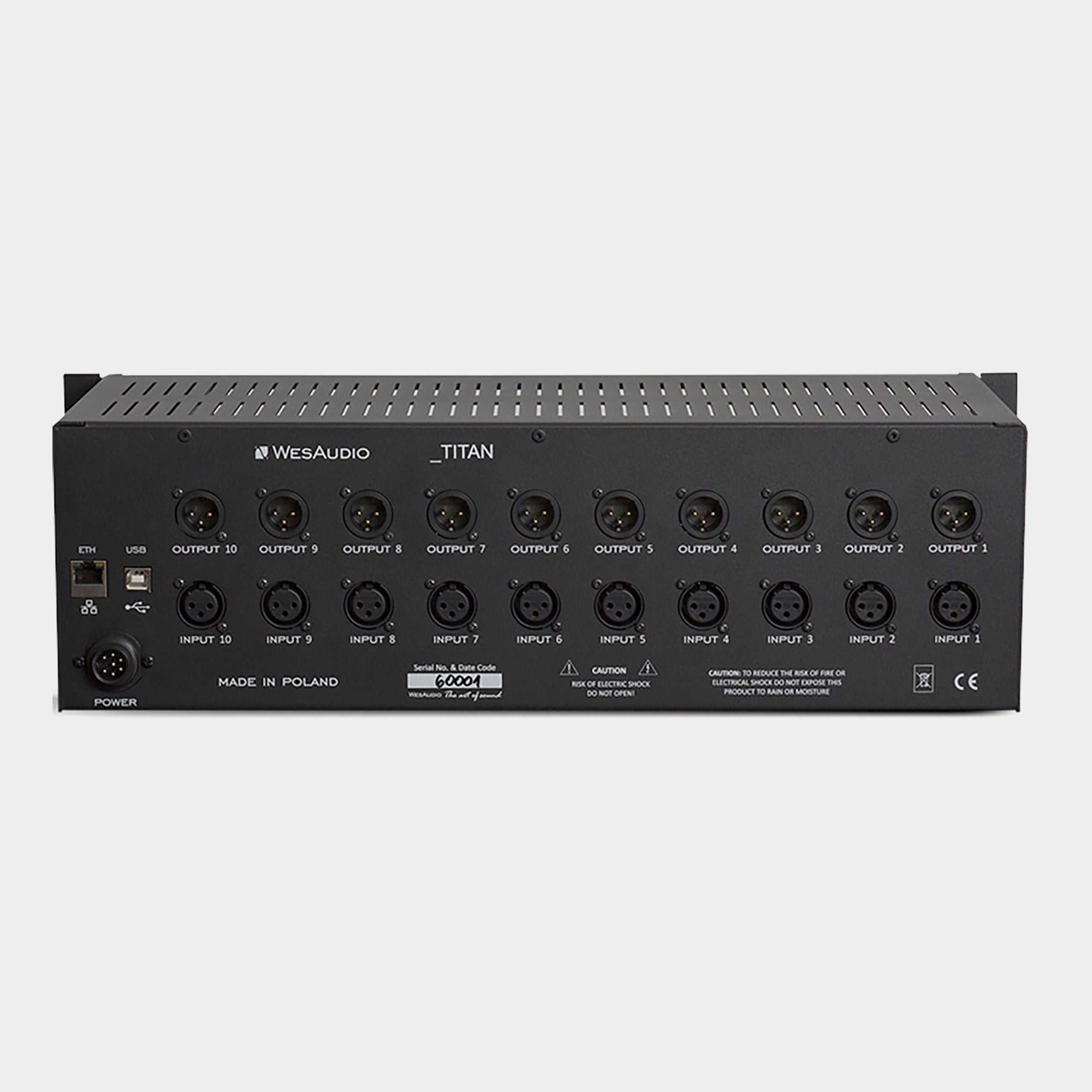

_TITAN is complete recall system designed to provide total integration with your beloved analogue equipment. It extends the standard 500 series connector with additional pins where modules can be designed to support digital recall or any other vendor specific functionalities. This extension is part of the new open standard "ng500" – "Next Generation 500 series" which allows other manufacturers to design and implement digitally controlled analogue devices.

High-end Linear Power Supply
Titan includes an external linear power supply, capable to deliver 5A of power. This will bring sound of your units to the next level!

10 Slots for 500 Series or ng500 Series Modules
_TITAN can host standard 500 series modules, but it is designed for use with NG500 modules, which offer recall of up to 10 units with single USB or Ethernet connection.

Control all your modules through one connection

_TITAN allows to control/recall all hosted modules through one connection:

Remotely-controlled stereo links
_TITAN provides simple standalone application to change status of stereo links between modules.

No more problems with accessing your chassis configuration.

IAC – Internal Audio Connector

At slot number 10, _TITAN implements special connector, which routes all audio signals from and to, slots 1-8.

This allows future integration with audio interface modules, analog summing modules or patchbays.

INPUT source for any slot is implemented through analog relays, and it is configurable through standalone application. This prevents two different signal sources to be routed to the same module.

Wes Audio _Mimas

_MIMAS - World's first 1176 style compressor with digital control through VST/AAX plugin.

_Prometheus

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats.

Features summary:

_Hyperion

HYPERION is fully analogue parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. It's innovative design utilises 18 VCAs per channel to provide noiseless parameter changes and very musical nature.

_Dione

DIONE implements a famous stereo bus compressor design made with best components available on the market. Unit is fully compatible with GCon protocol which allows complete parameters management over USB or through open specification 500 series frame - _TITAN. Besides its vintage and transparent nature, unit itself implements many modern features which brings extreme flexibility to shape your sound - like parallel compression or configurable harmonic distortion.

_Calypso

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis - _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.
