Shadow Hills The Equinox & PSU

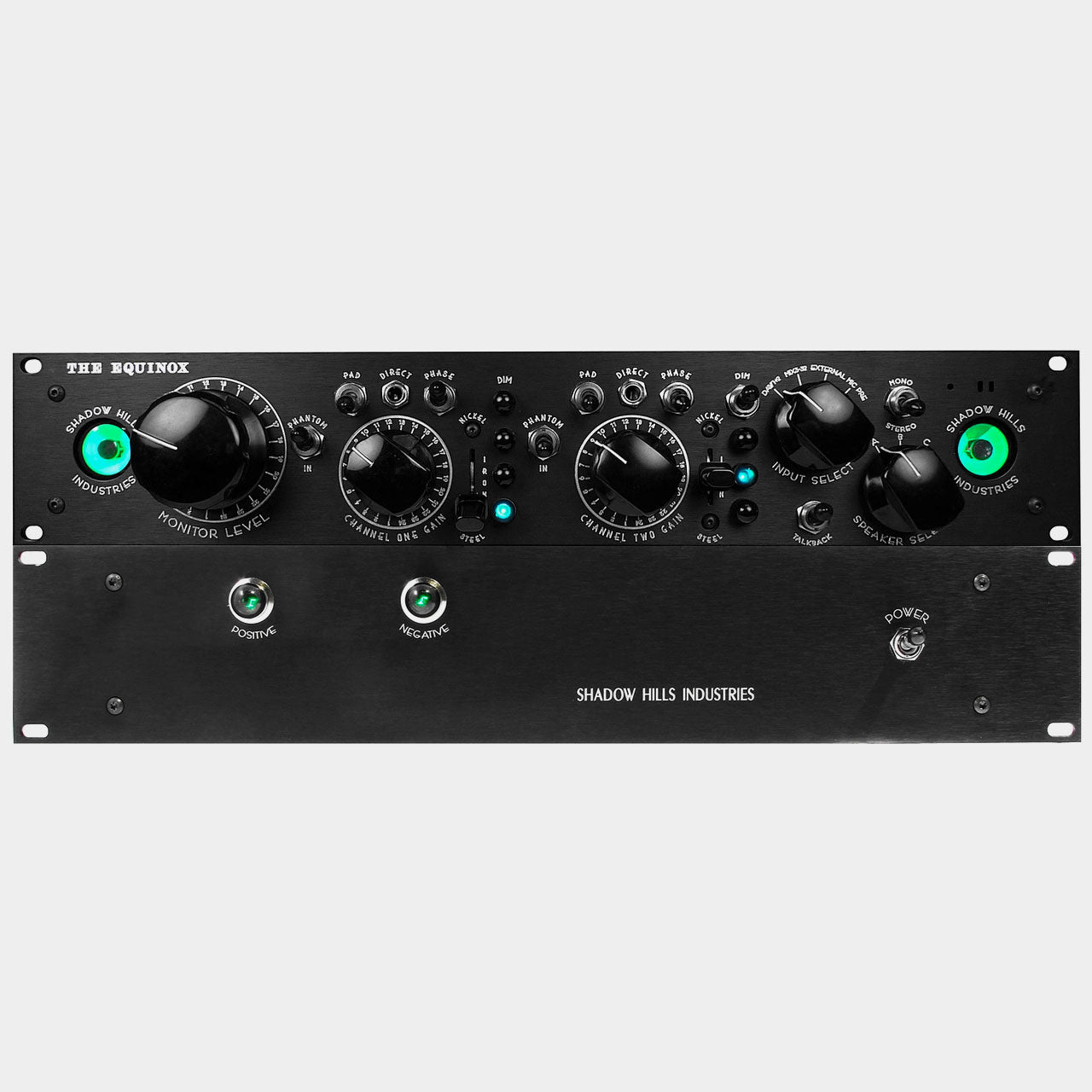

The Shadow Hills Equinox is like a complete small-format recording console in just 2 rack spaces. It features 2 GAMA mic preamps, 30 channels of analog summing, and a mastering-grade monitor controller.

Microphone Preamp

The mic preamps are the Golden Age Microphone Amps. Each has 60dB of gain, 24 position gold-plated stepped attenuators, 48V Phantom Power, 20 dB Pad, Phase Reverse, and 1/4” DI Input. The most exciting feature of the amplifier section is the switchable output transformers, which allow for several different sonic flavors in the same box. The transformers and characteristics are as follows:

Summing Network

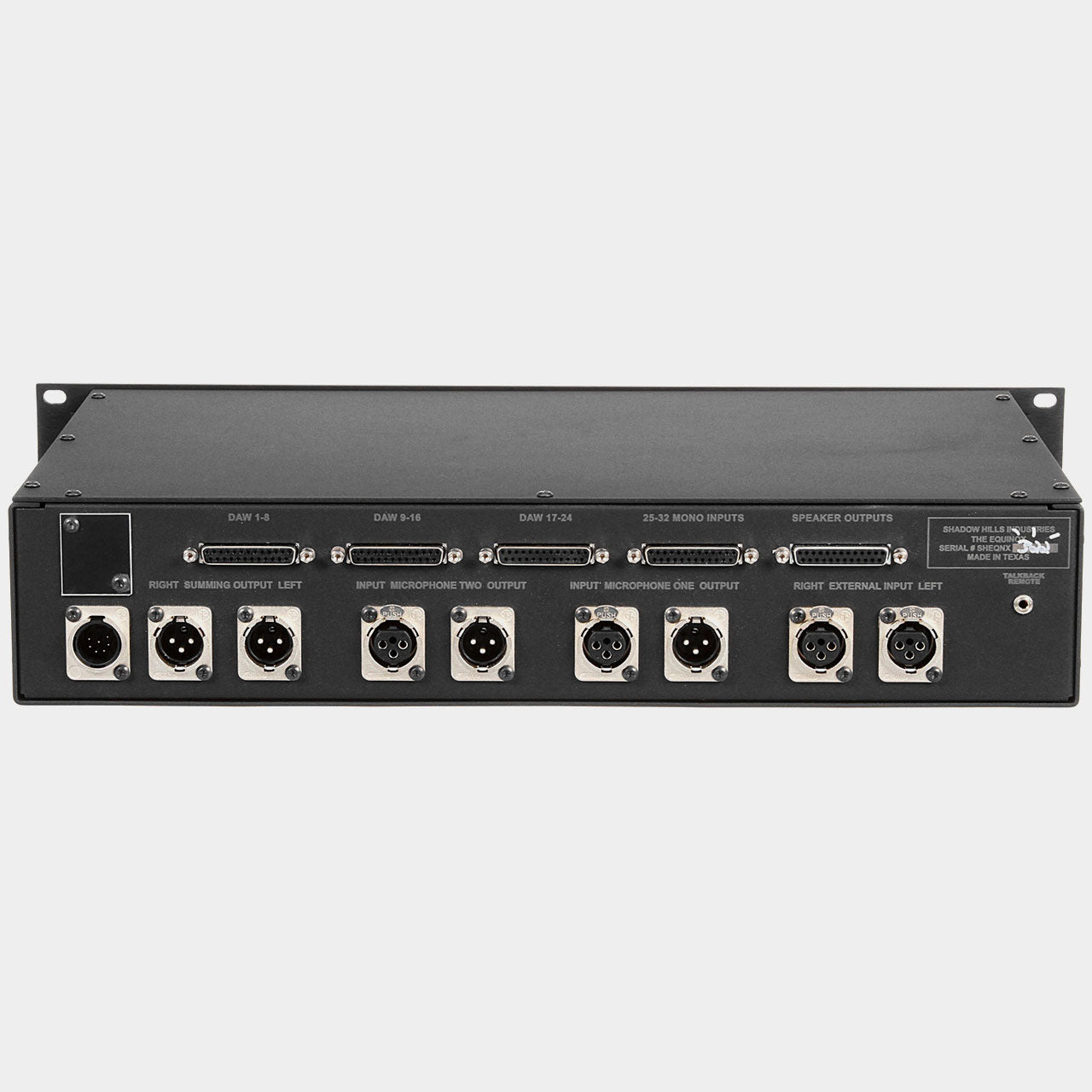

The summing buss is a 30-channel mixer utilizing copper buss bars and esoteric resistors, for simply the finest sounding passive summing. DAW inputs 3-24 are STEREO summed and distributed odd to left and even to right, while DAW inputs 25-32 are sent MONO to both channels of the summing network. The summed signal then passes through the Golden Age amplifiers with selectable output transformers. Effectively allowing the user to choose between the sounds of three different consoles on the mix bus.

Monitor Section

The monitor section features: choice of 4 input sources, choice of 3 speaker outputs, 24 step Monitor Level control, Monitor Level DIM switch, switch to engage built-in Talkback Mic, Cue output, and Stereo/Mono switch.

With the INPUT SELECT switch IN:

The monitor section also features 3 pairs of Speaker Outputs and a Cue (or headphone) Output. Both reproduce what the Input Select is set to. Only one speaker output pair may be selected at a time. The speaker output level is control by the Monitor Level knob. The Cue Output is unaffected by the Monitor Level, and switches to the Talkback signal when the Talkback Switch is engaged. Simultaneously, the Monitor Level dims when the Talkback Switch is engaged.

With all these features in a rugged 2U enclosure the Shadow Hills Equinox is equipped for the demands of modern recording, but styled and crafted to the high standards of a bygone era.

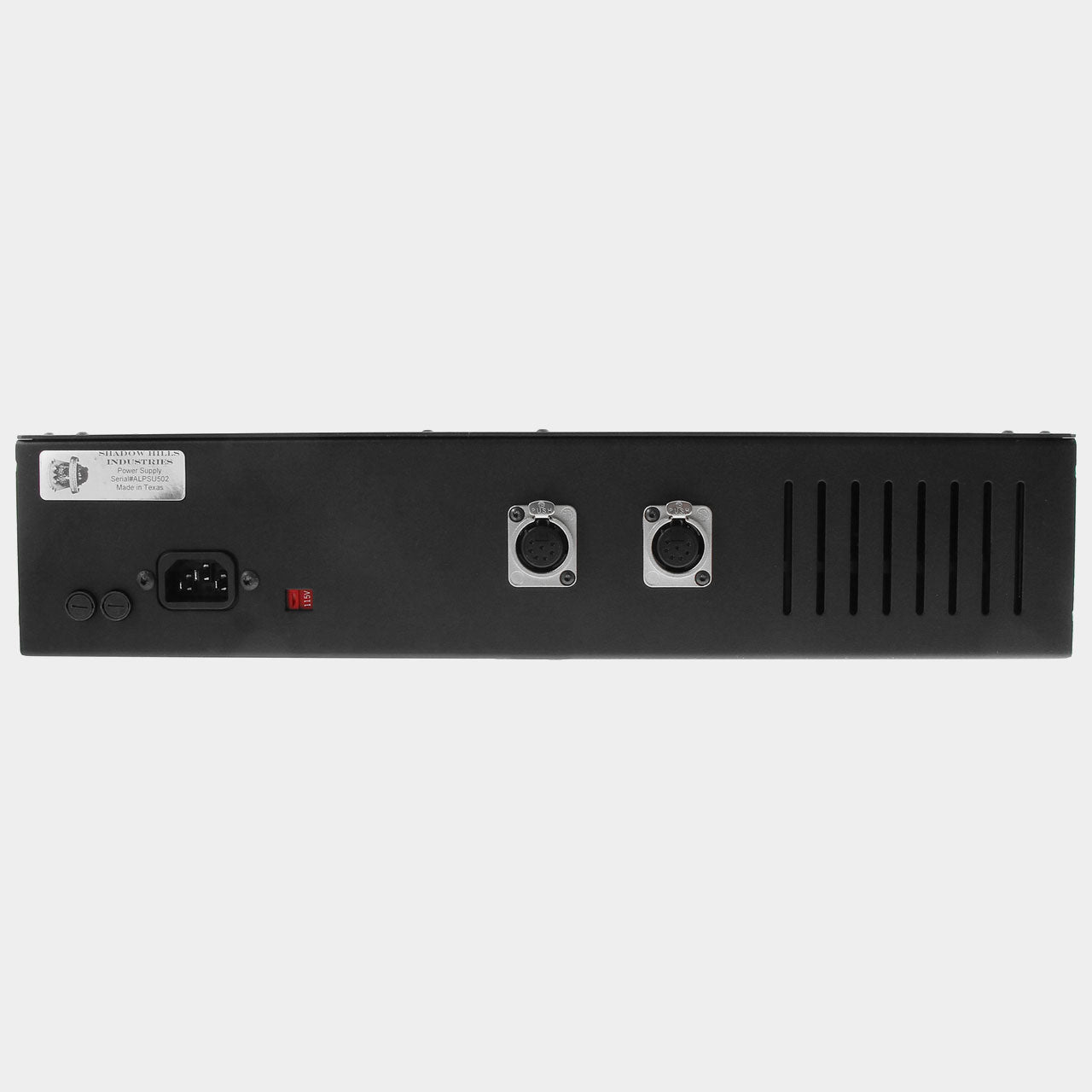

Note: This unit requires the Shadow Hills PSU (not included).
