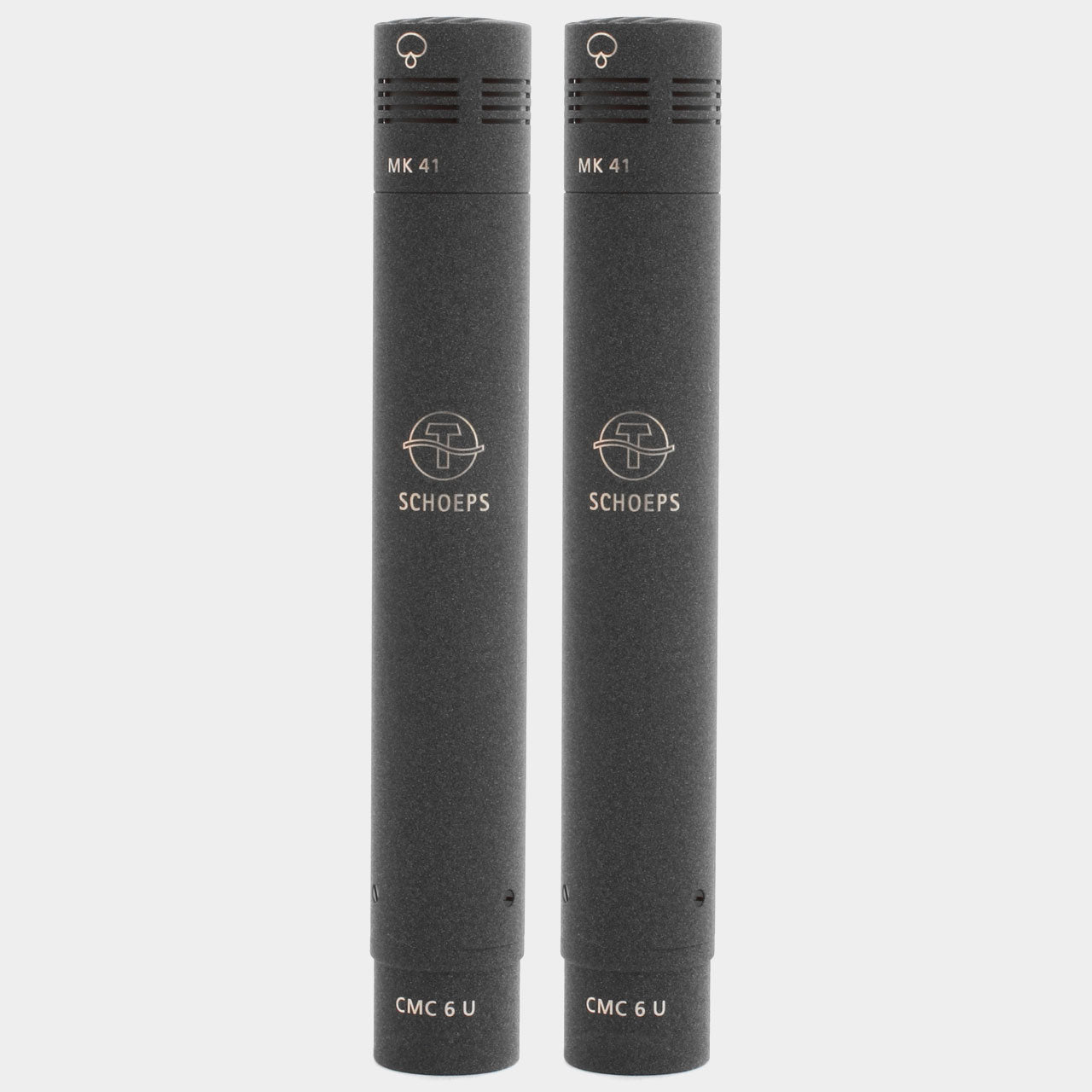

Schoeps Stereo Set With MK41 Capsules

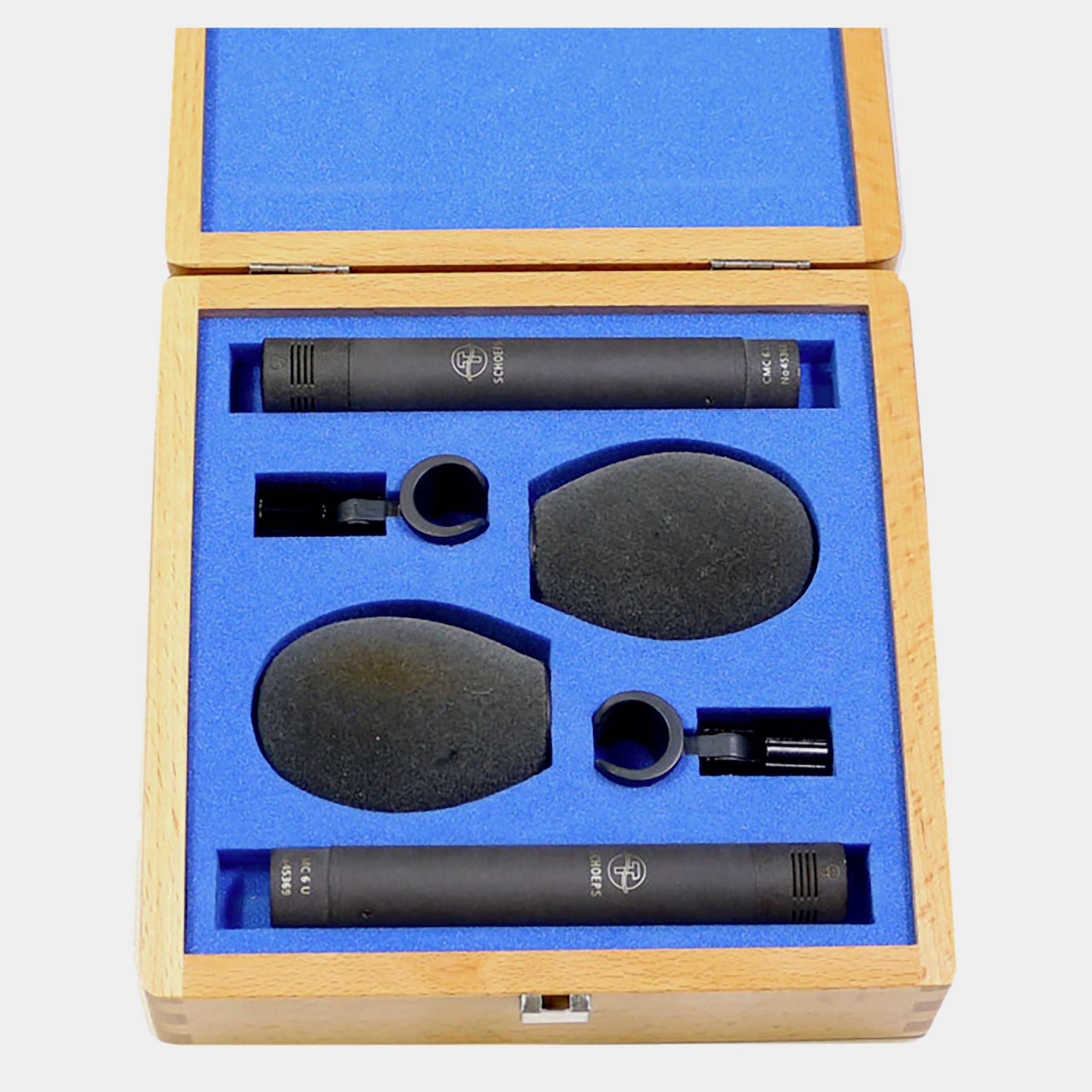

What's in the box

The MK4 Capsule

The MK 41 is strongly directional. Sound arriving from off axis is attenuated even more than with a cardioid. The pickup is "drier" and less susceptible to acoustic feedback than any other SCHOEPS capsule type (a loudspeaker should not be located directly along the rear axis of the microphone, however).

The capsules of condenser microphones (the only type which Schoeps manufactures) can't be connected directly to microphone cables or inputs; a microphone amplifier is required in between. Thus a complete microphone of the Colette series comprises any of the twenty available types of capsules combined with an amplifier.

The CMC6 Amplifier

The Schoeps CMC 6 Amplifier is designed for standard 48- and 12-Volt phantom powering. Its circuitry recognises the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way; mainly, the difference is that the current drawn at 12 Volts is greater than at 48 Volts. However, the 12-Volt mode consumes less power and might be preferred for battery-powered recording.

The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a minuscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in balanced form. The CMC 6 amplifier offers a symmetrical, transformerless, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference.
