PMC15 SUB (Pair)

PMC · MAIN MONITOR SERIES

Deep-bass authority for demanding monitoring.

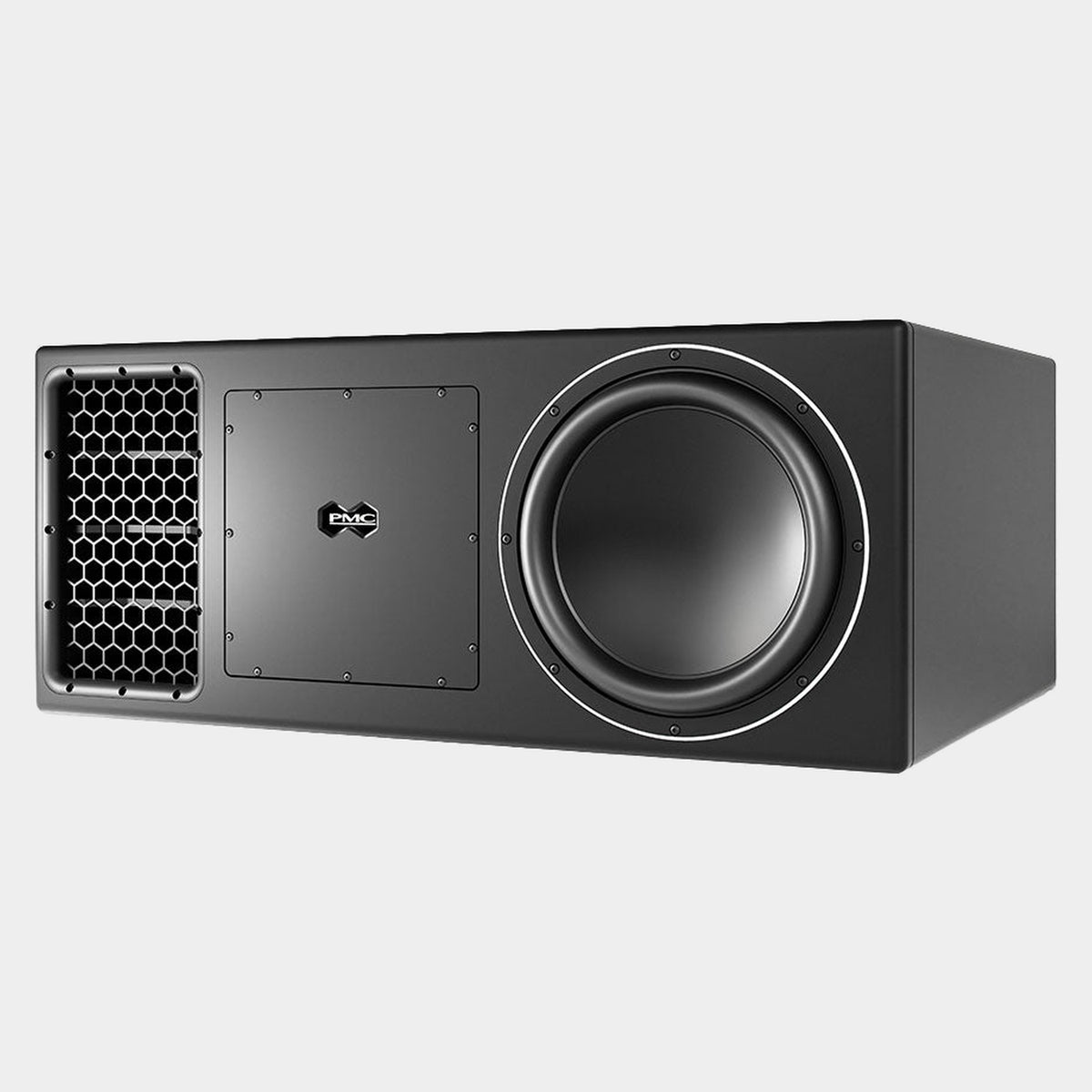

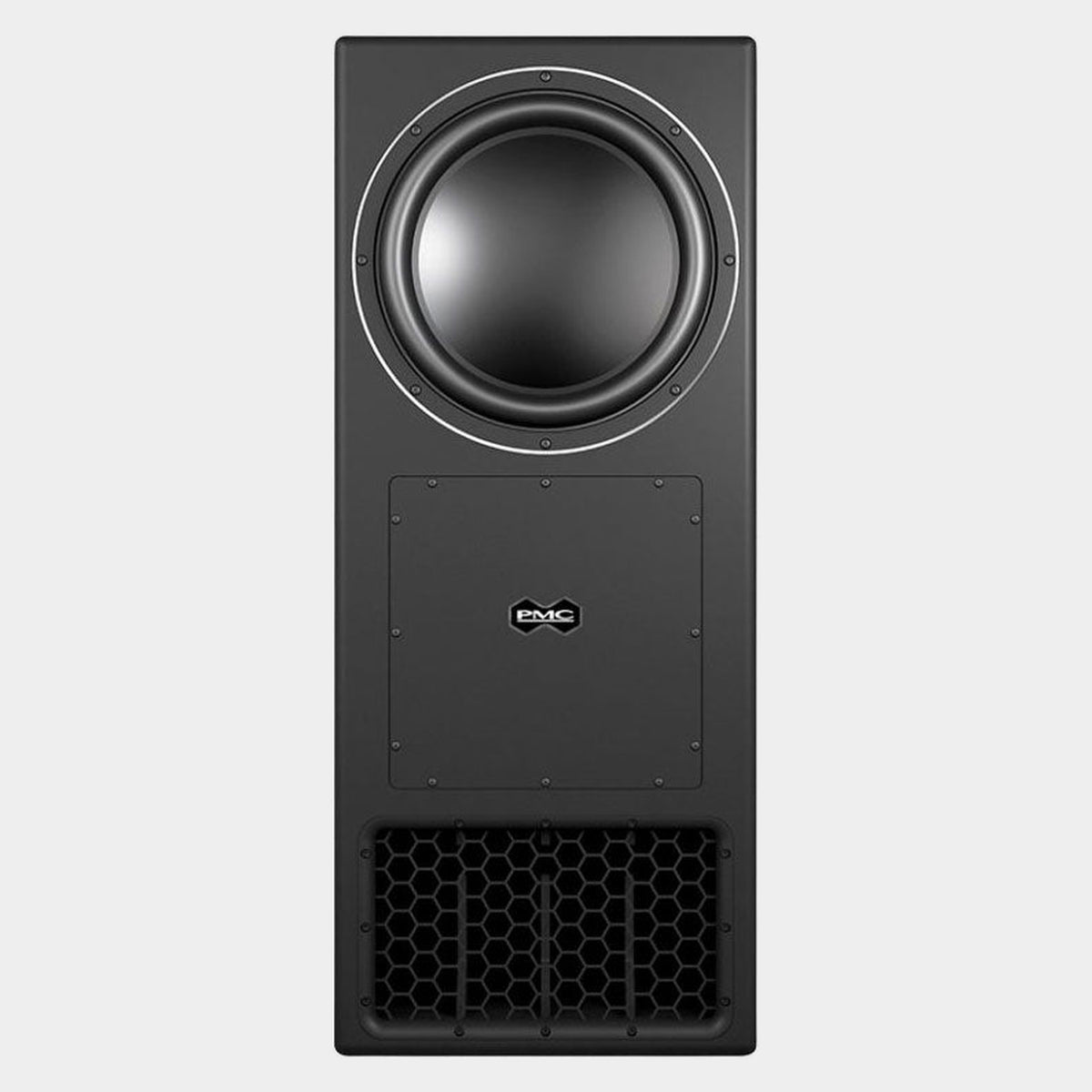

PMC15 SUB (Pair). The PMC15 SUB brings PMC’s new 15-inch driver platform to dedicated low-frequency monitoring. Designed to supplement a PMC system as an independent subwoofer, it combines a substantial ATL enclosure with LaminairX airflow control and 2000 W of master36 amplification. It is a foundation for rooms that need to assess demanding bass content with the same care given to the rest of the mix.

PAIR · 2 UNITS

LOW-FREQUENCY ENGINEERING

Bass with definition and purpose.

PMC’s in-house 15-inch bass unit combines a substantial double-stacked magnet assembly with a three-inch, three-layer voice coil and a stable suspension. It is designed to maintain controlled movement over an extended excursion range, supporting high power handling and low distortion. The four-metre effective transmission line works with the driver to provide the scale required for demanding low-frequency monitoring.

ATL & LAMINAIRX

An enclosure designed around the driver.

PMC’s Advanced Transmission Line uses the energy from the rear of the bass driver through a carefully controlled internal path, contributing useful low-frequency output at the vent. The cabinet, driver and damping are engineered together, so extension is part of a complete acoustic design. LaminairX shapes airflow at the outlet to reduce turbulence and unwanted air noise, supporting clear bass reproduction when the system is working hard. The result is intended to make low-frequency information easier to judge, from the body of a kick drum to sustained synthesiser notes and the weight of an orchestral recording.

AMPLIFICATION & FILTERING

Control the low-frequency contribution.

A dedicated master36 rack-mounted DSP/amplifier supplies 2,000 W to the PMC15 SUB bass driver. Its Class-D amplification is integrated with DSP high- and low-pass filtering, driver excursion protection and room-alignment EQ. Analogue and digital input support, with digital rates up to 192 kHz, allows the subwoofer to fit into different studio signal paths without changing its role as a dedicated low-frequency reference.

SOUNDALIGN2

Bring the system into your room.

SoundAlign2 provides browser-based access to the PMC electronics over a wired Ethernet network. From a PC or Mac on the studio LAN, the engineer or installer can reach the system’s alignment controls and room EQ. Keeping these adjustments accessible is useful when refining placement, balancing levels or integrating the loudspeakers into a larger monitoring layout. Electronic alignment works alongside appropriate positioning and acoustic treatment; the system can be tailored to the room and the way it is used.

INSTALLATION & EXPANSION

Specify the system around your work.

A dedicated subwoofer can support low-frequency monitoring, bass-managed systems or an appropriately configured LFE channel. Its crossover settings, level and placement should be selected for the main loudspeakers and room. A two-unit setup gives the system designer additional placement options, but the final arrangement still needs careful alignment. SX Pro can help establish which cabinet and electronics configuration suits the intended installation.

YOUR SYSTEM

What this listing includes.

2 × PMC15 SUB independent subwoofer systems, each with its own master36 DSP/amplifier. This pair is two complete single-SUB products.

SX PRO · AUTHORISED PMC DEALER

Plan delivery and long-term support.

These large-format products ship by freight. Contact SX Pro to confirm availability, access requirements and delivery arrangements for your location. The final specification should include the cabinet orientation, electronics, cabling and any installation hardware required for your room.

PMC’s UK warranty is two years, extended to five years for eligible professional products registered with PMC within ten days of purchase. Proof of purchase and PMC’s warranty terms apply.
