PMC12 SUBXBD (Pair)

PMC · MAIN MONITOR SERIES

Give your PMC12 a second bass cabinet.

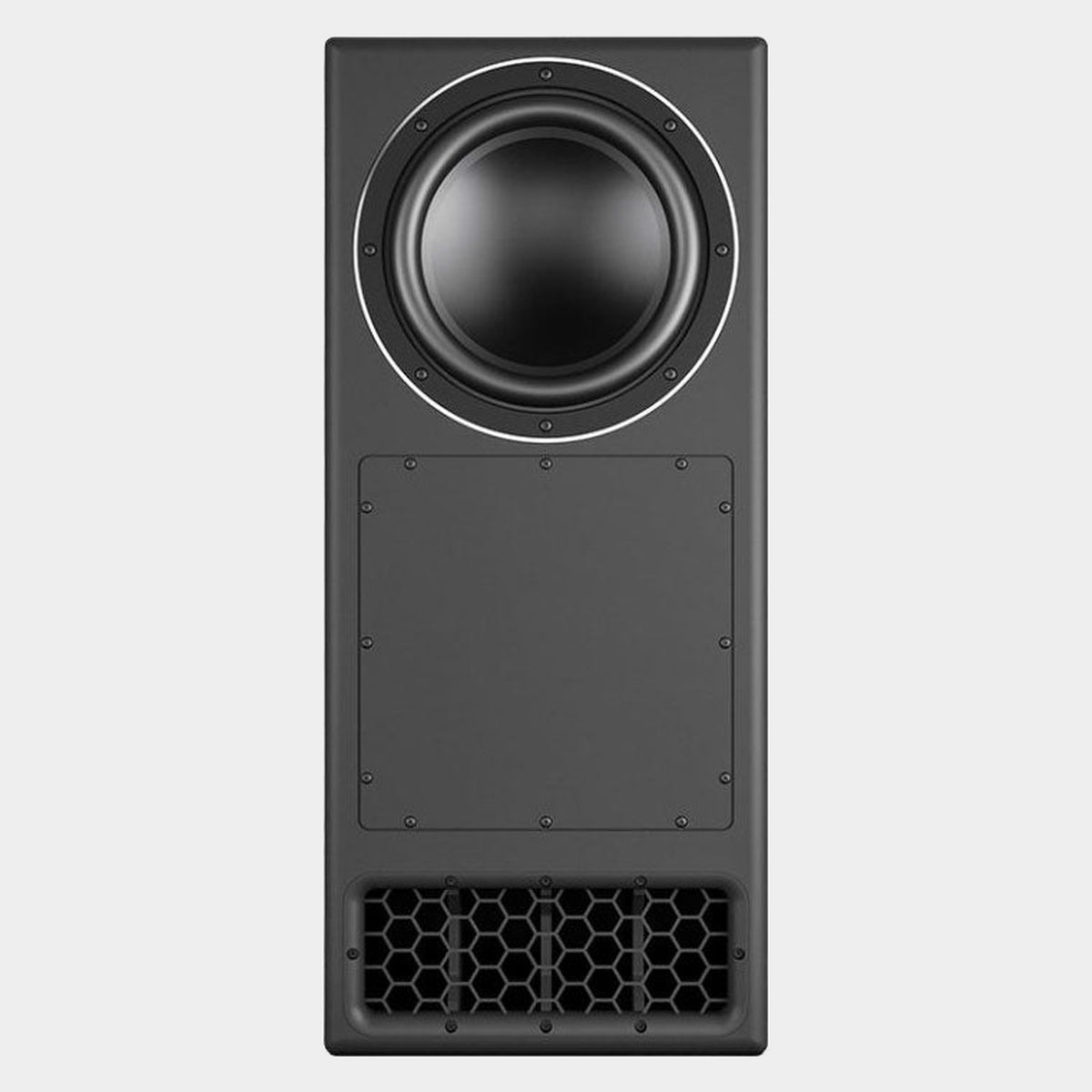

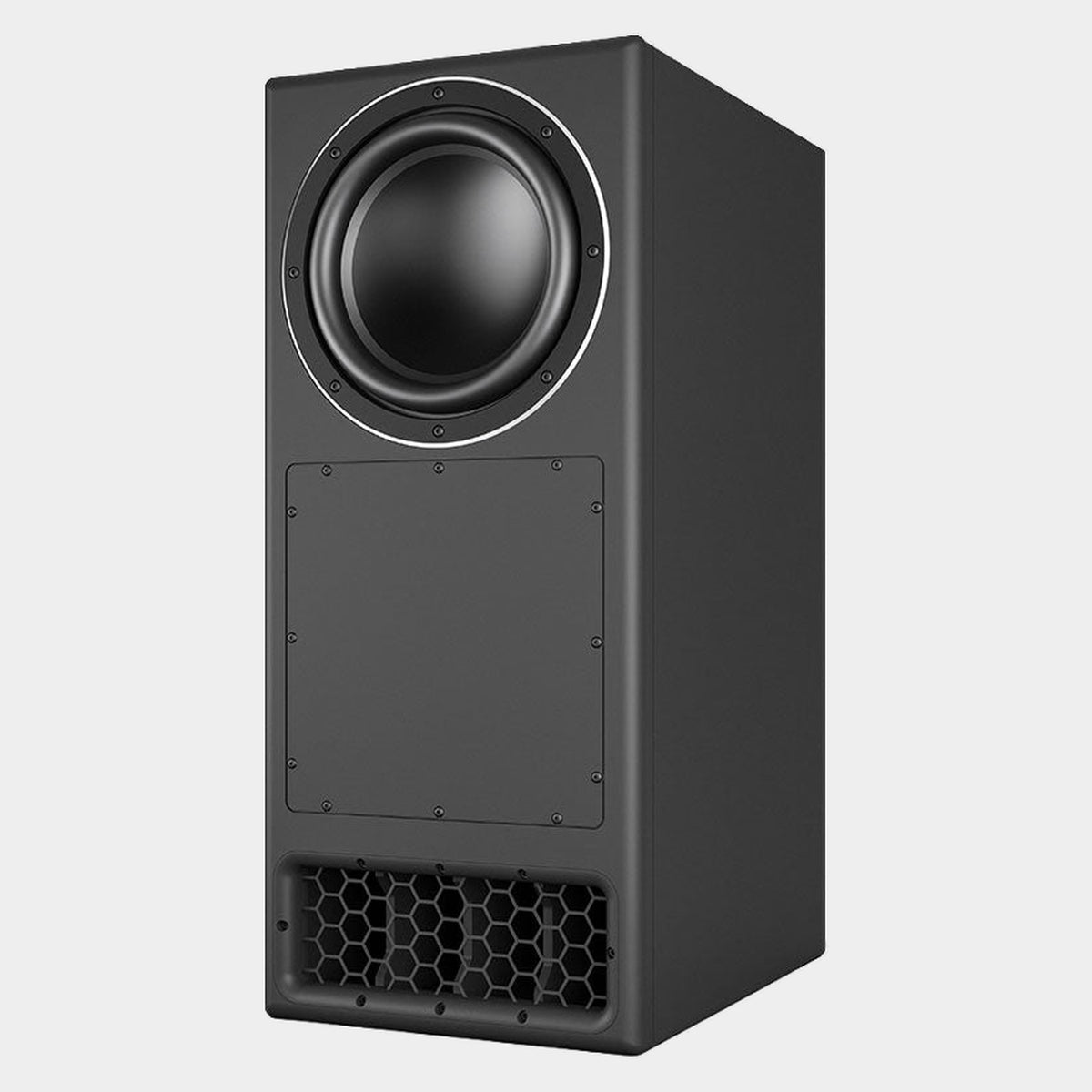

PMC12 SUBXBD (Pair). The PMC12 SUBXBD is the matching low-frequency expansion cabinet for the PMC12 main monitor. It is designed to form the second cabinet of a PMC12 XBD channel, adding low-frequency capacity while preserving the driver technology and acoustic character of the main system. For an existing PMC12 installation, it provides a defined route to the twin-cabinet XBD configuration without replacing the full-range monitors.

PAIR · 2 UNITS

LOW-FREQUENCY ENGINEERING

Bass with definition and purpose.

The 12-inch driver uses double-stacked magnets, a three-inch, three-layer voice coil and a highly stable suspension. These elements are designed to maintain linear motor behaviour over an extended excursion range, reducing distortion when the programme demands significant cone movement. For the engineer, the purpose is a bass presentation that remains useful for timing and tonal decisions as level increases.

ATL & LAMINAIRX

An enclosure designed around the driver.

PMC’s Advanced Transmission Line uses the energy from the rear of the bass driver through a carefully controlled internal path, contributing useful low-frequency output at the vent. The cabinet, driver and damping are engineered together, so extension is part of a complete acoustic design. LaminairX shapes airflow at the outlet to reduce turbulence and unwanted air noise, supporting clear bass reproduction when the system is working hard. The result is intended to make low-frequency information easier to judge, from the body of a kick drum to sustained synthesiser notes and the weight of an orchestral recording.

SYSTEM INTEGRATION

A defined upgrade path.

The PMC12 SUBXBD works with the existing PMC12 master36 DSP/amplifier platform. The additional bass cabinet receives up to 1000 W while retaining the system’s crossover management, excursion protection and room-alignment facilities. It is an extension of the matching main monitor, so it should be specified as part of that system rather than connected as a general-purpose independent subwoofer.

SOUNDALIGN2

Bring the system into your room.

The XBD cabinet participates in the matching main monitor’s SoundAlign2-controlled system. Alignment and room EQ are managed through the PMC electronics over a wired Ethernet network, using a standard web browser. This keeps the expanded monitoring channel within one coordinated control platform. The main and additional bass cabinets should be positioned and aligned as a system, taking room boundaries, listening distance and the intended monitoring layout into account.

INSTALLATION & EXPANSION

Specify the system around your work.

A single PMC12 SUBXBD expands one matching PMC12 channel. A pair of expansion cabinets is the appropriate starting point when upgrading an existing stereo pair. Full-range PMC12 monitors remain essential to the system and are not supplied with this listing. Cabinet orientation and the relationship between the main and extension cabinets should be planned together, whether the system is freestanding or incorporated into the room architecture.

YOUR SYSTEM

What this listing includes.

2 × PMC12 SUBXBD expansion cabinets. For upgrading two PMC12 main monitors to an XBD pair. The PMC12 full-range monitors are not included. Uses the existing matching main monitor’s master36 electronics.

SX PRO · AUTHORISED PMC DEALER

Plan delivery and long-term support.

These large-format products ship by freight. Contact SX Pro to confirm availability, access requirements and delivery arrangements for your location. The final specification should include the cabinet orientation, electronics, cabling and any installation hardware required for your room.

PMC’s UK warranty is two years, extended to five years for eligible professional products registered with PMC within ten days of purchase. Proof of purchase and PMC’s warranty terms apply.
