PMC 6-XBD System

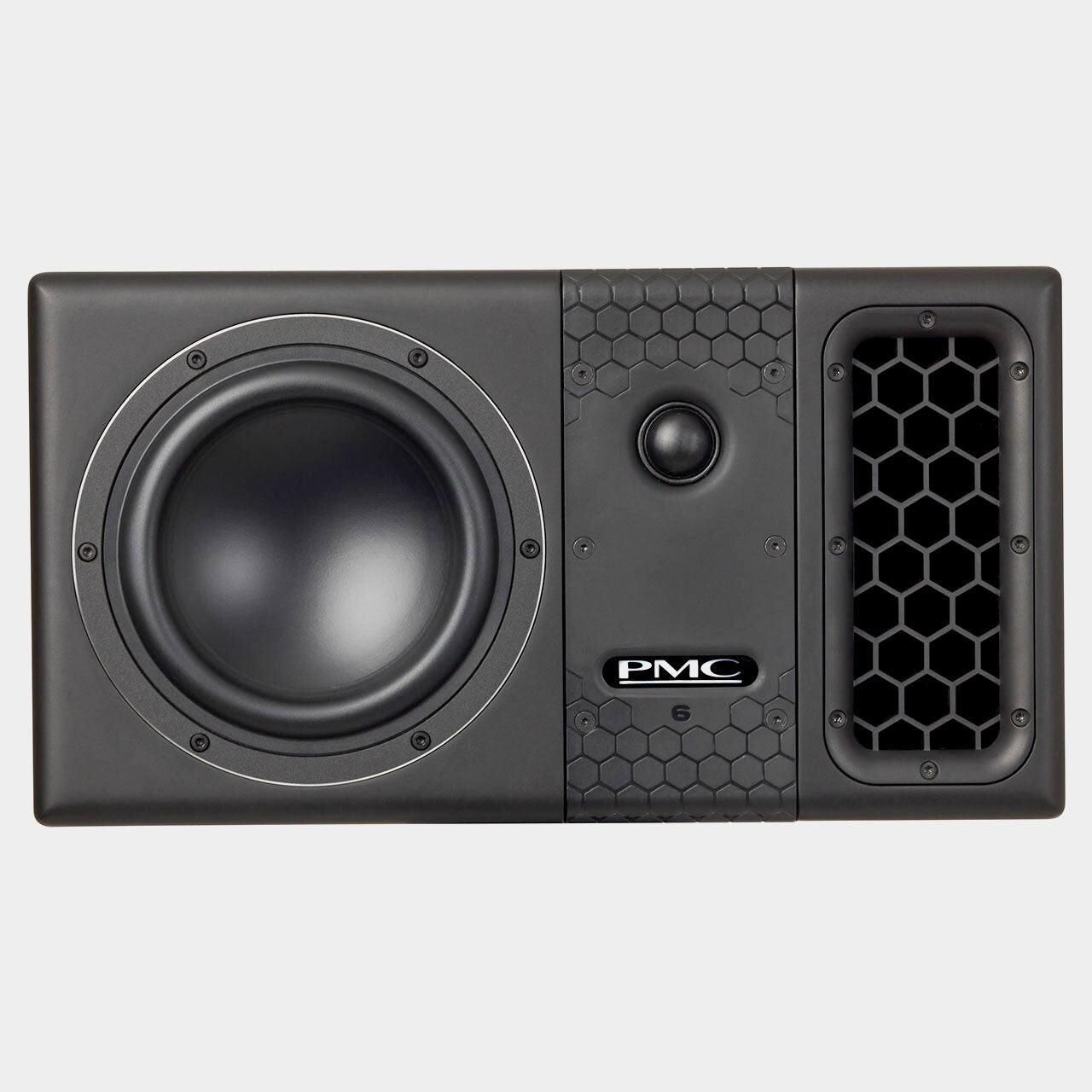

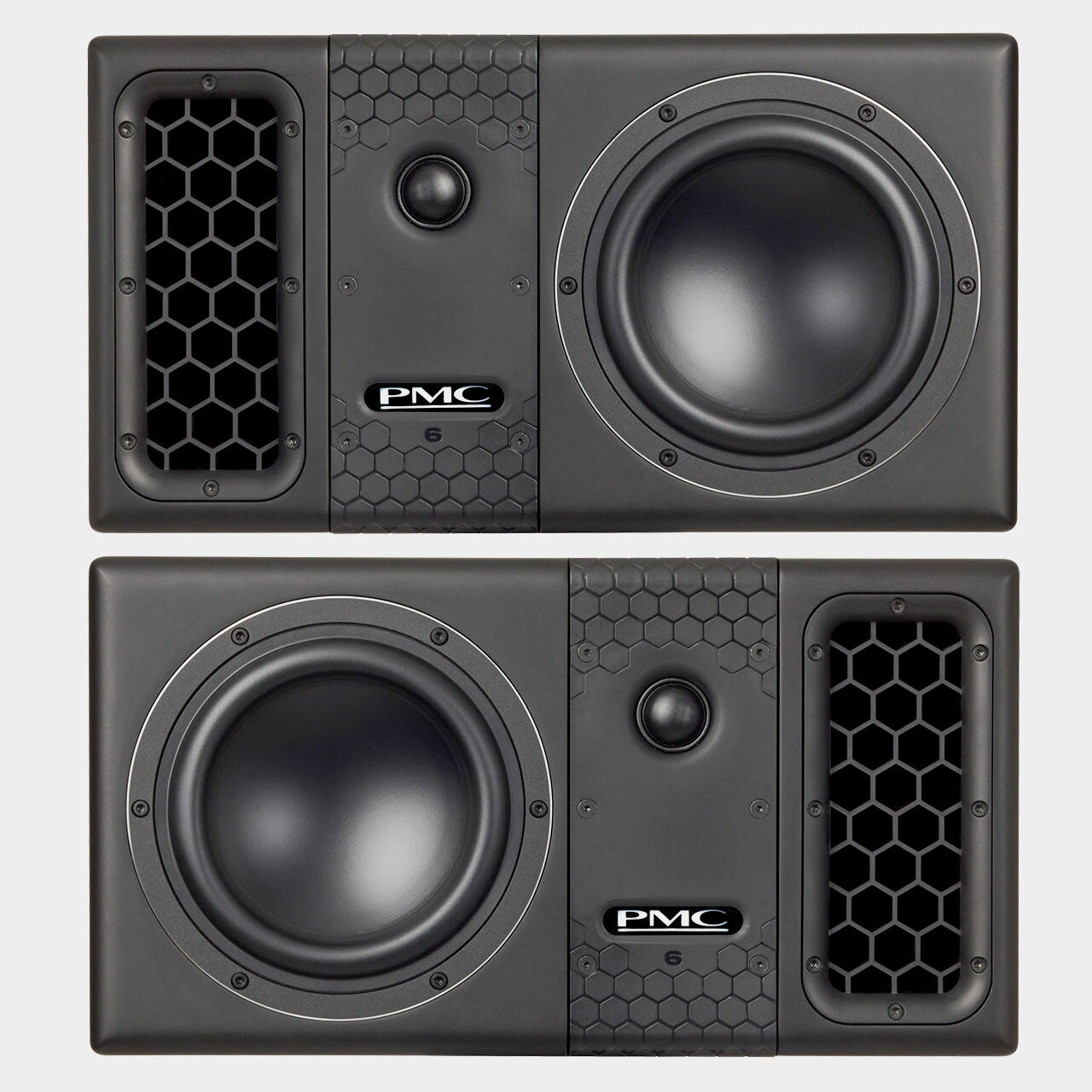

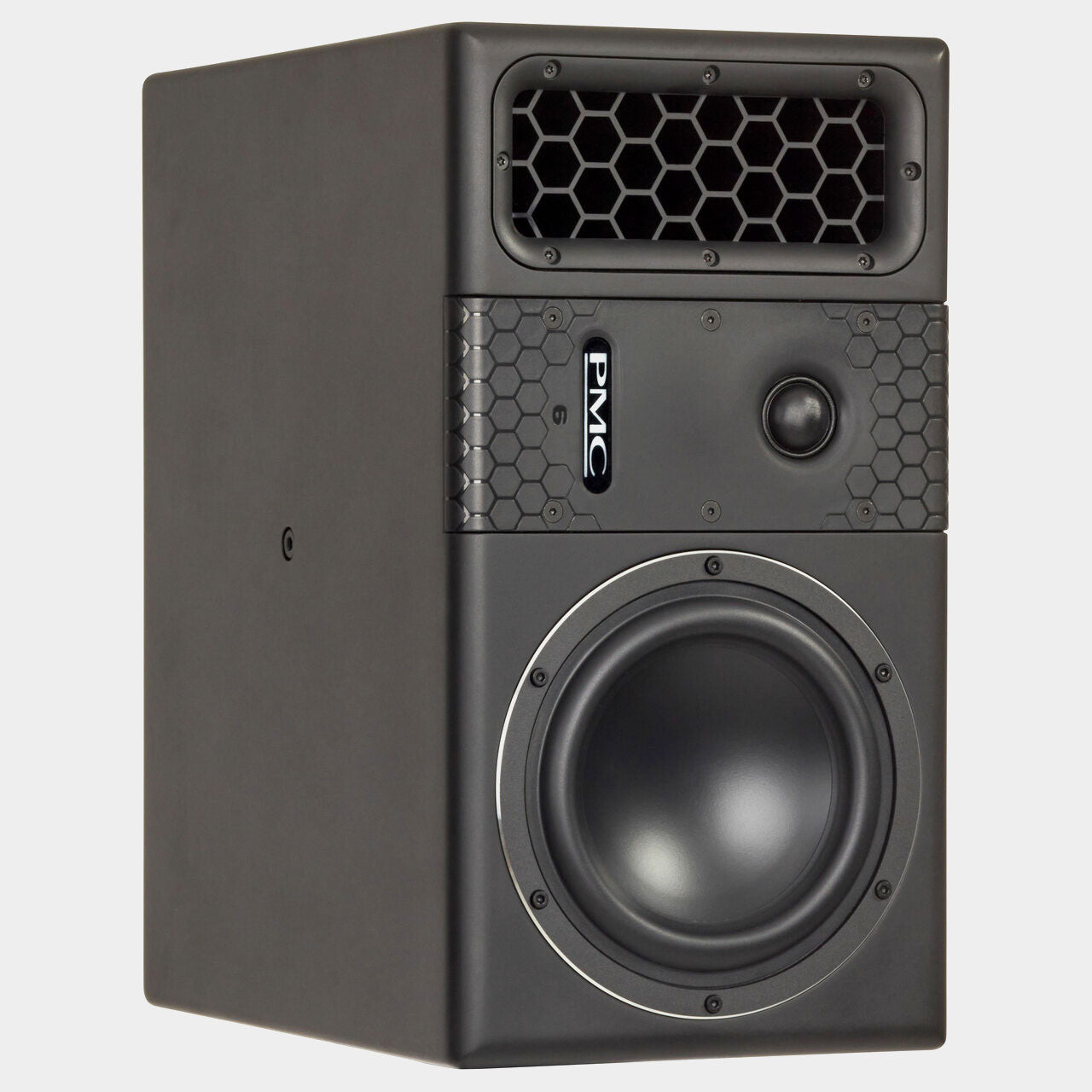

In the case of the PMC6, the bass response of the resulting XBD monitor combination is extended from 39Hz down to 25Hz — giving genuine midfield monitor performance in a compact installation — and the speaker becomes a true three-way design. Also, since the mid-bass driver no longer handles the lowest bass frequencies, distortion is reduced, headroom is extended, and the mid-range frequencies gain extra clarity to lend vocals still greater realism and depth.

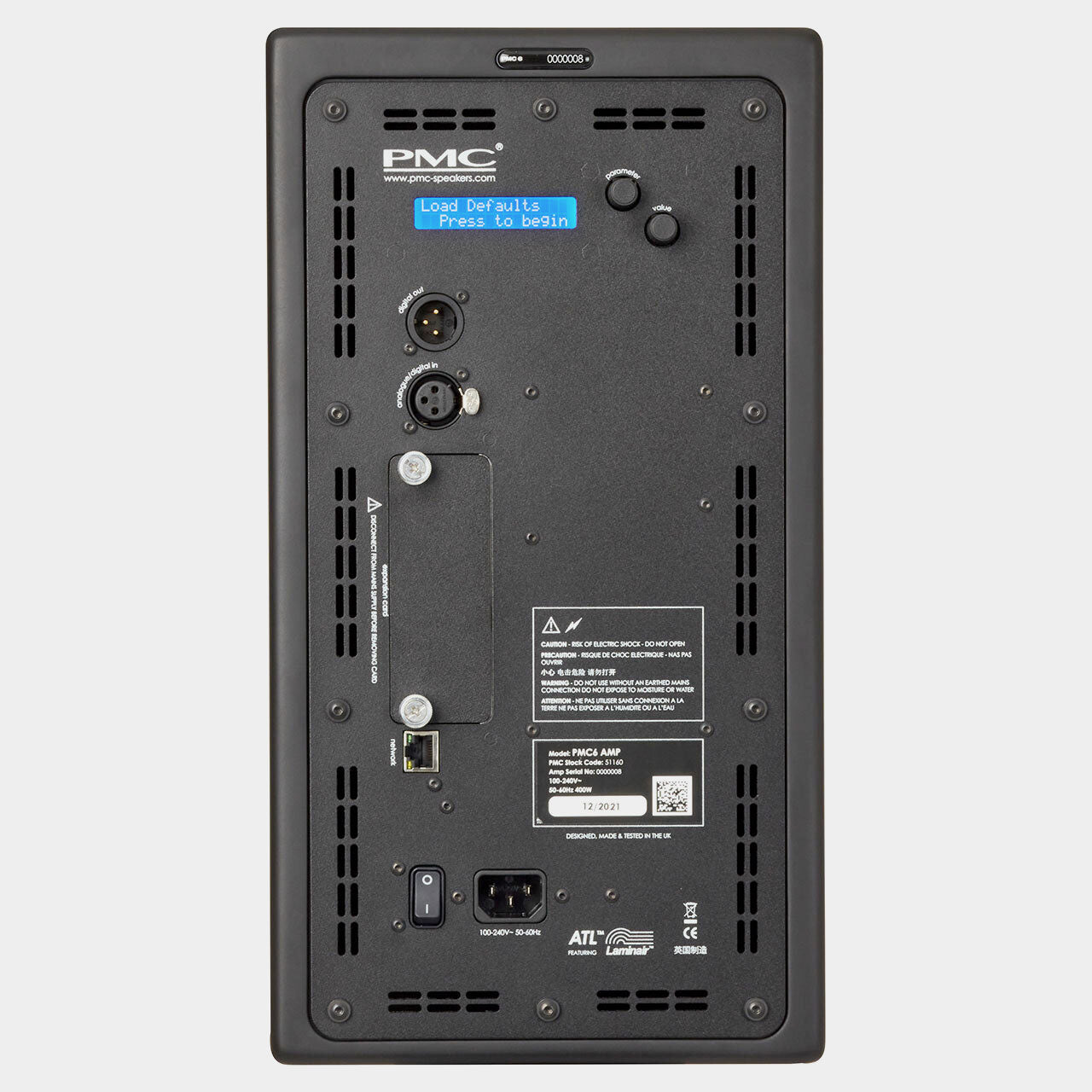

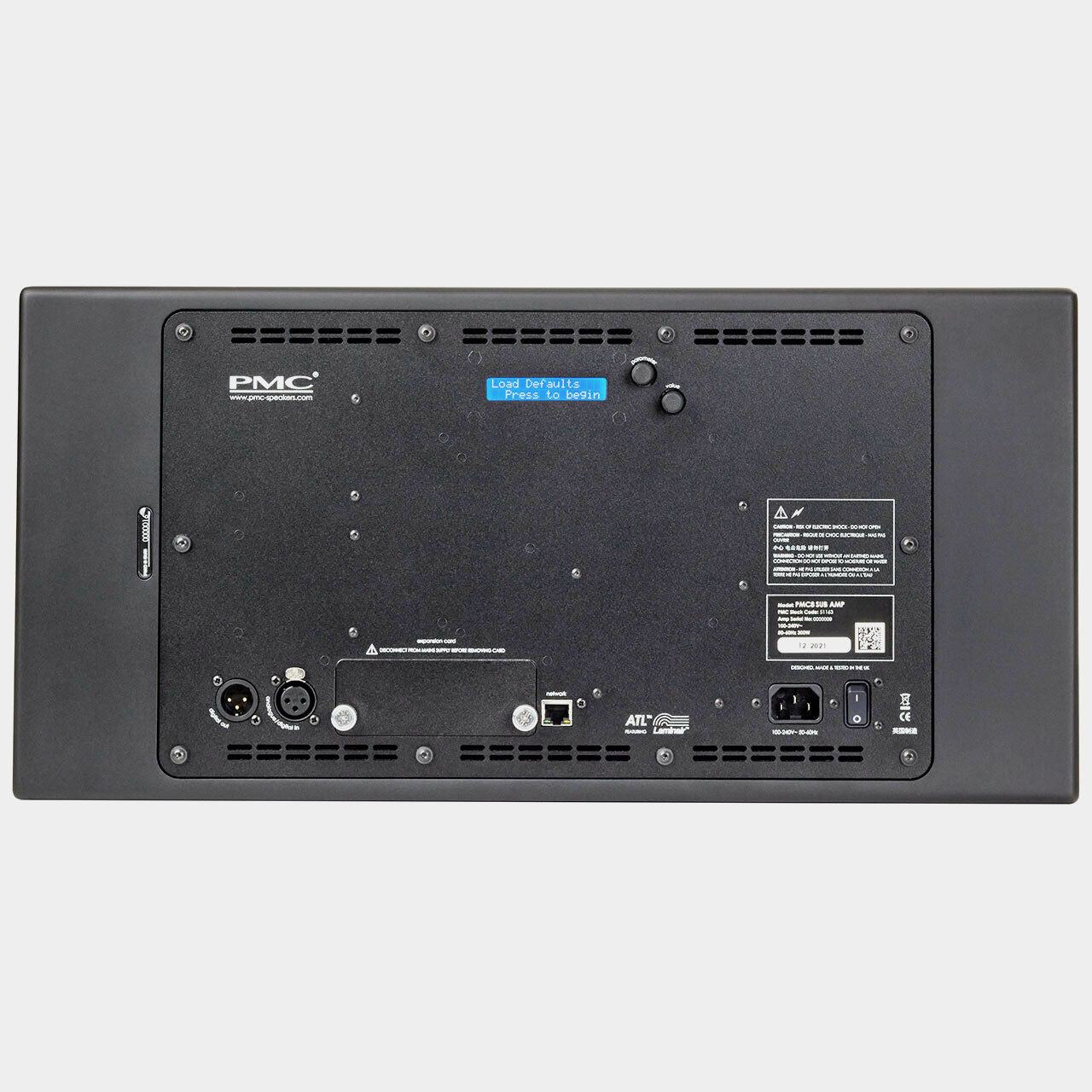

It’s simple to configure the PMC6 XBD system; connect the input directly to the PMC6, and add an AES3 digital cable to carry the main monitor ‘through’ output down to the PMC8 SUB. The two cabinets can be connected either to a LAN or directly to each other via their network ports. When you select the dedicated ‘XBD’ mode the DSP seamlessly combines both units into a single, larger-scale monitor. Further detailed configuration can be carried out from the rear-panel controls or using the intuitive SoundAlign™ browser-based software via the LAN connection, where both speakers appear as a single PMC6 XBD unit when linked.

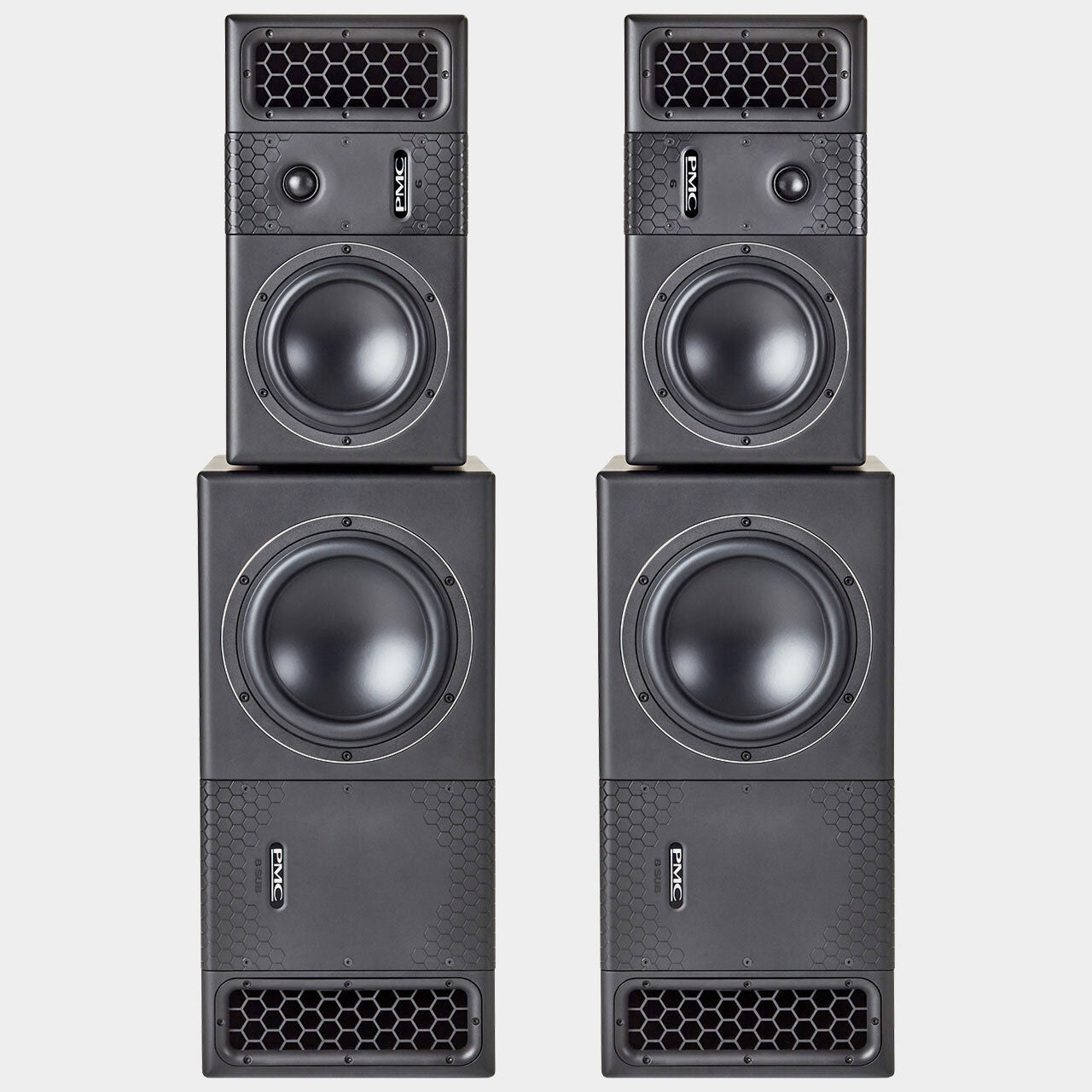

The PMC8 SUB can be used as a compact stand-alone subwoofer within conventional multichannel systems, or as an XBD cabinet, creating a full-range PMC6 XBD midfield monitor. When used in this way, the dedicated ‘XBD’ DSP mode marries the speakers and sub unit together, creating a coherent full-range system. Our subs are also perfectly suited to use in multi-channel and immersive systems, as our ATL™ bass-loading technology provides a gentler low-order LF roll-off than conventional ported cabinets, allowing a smoother, seamless integration between the height and surround channels and the sub.

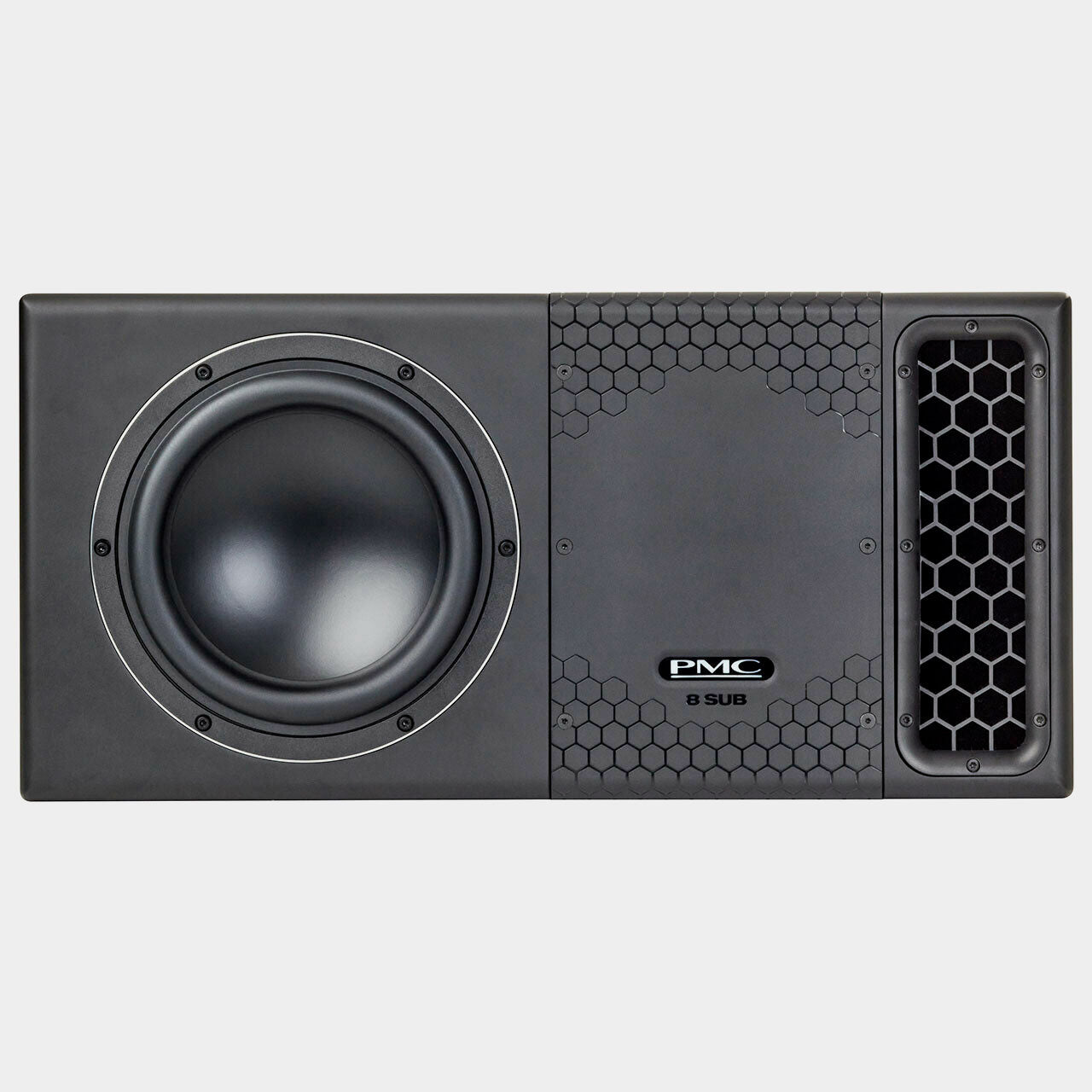

Featuring one custom eight-inch long-throw bass-driver, the PMC8 SUB is powered by a single 300W Class-D amplifier and controlled by the same powerful DSP engine as our other active models. DSP facilities include sophisticated room boundary equalisation options, parametric EQ, time delay, phase inversion, and the unique XBD mode, all configured via the loudspeaker’s rear panel or the browser-based SoundAlign™ software.
