PMC 6-2-XBD System

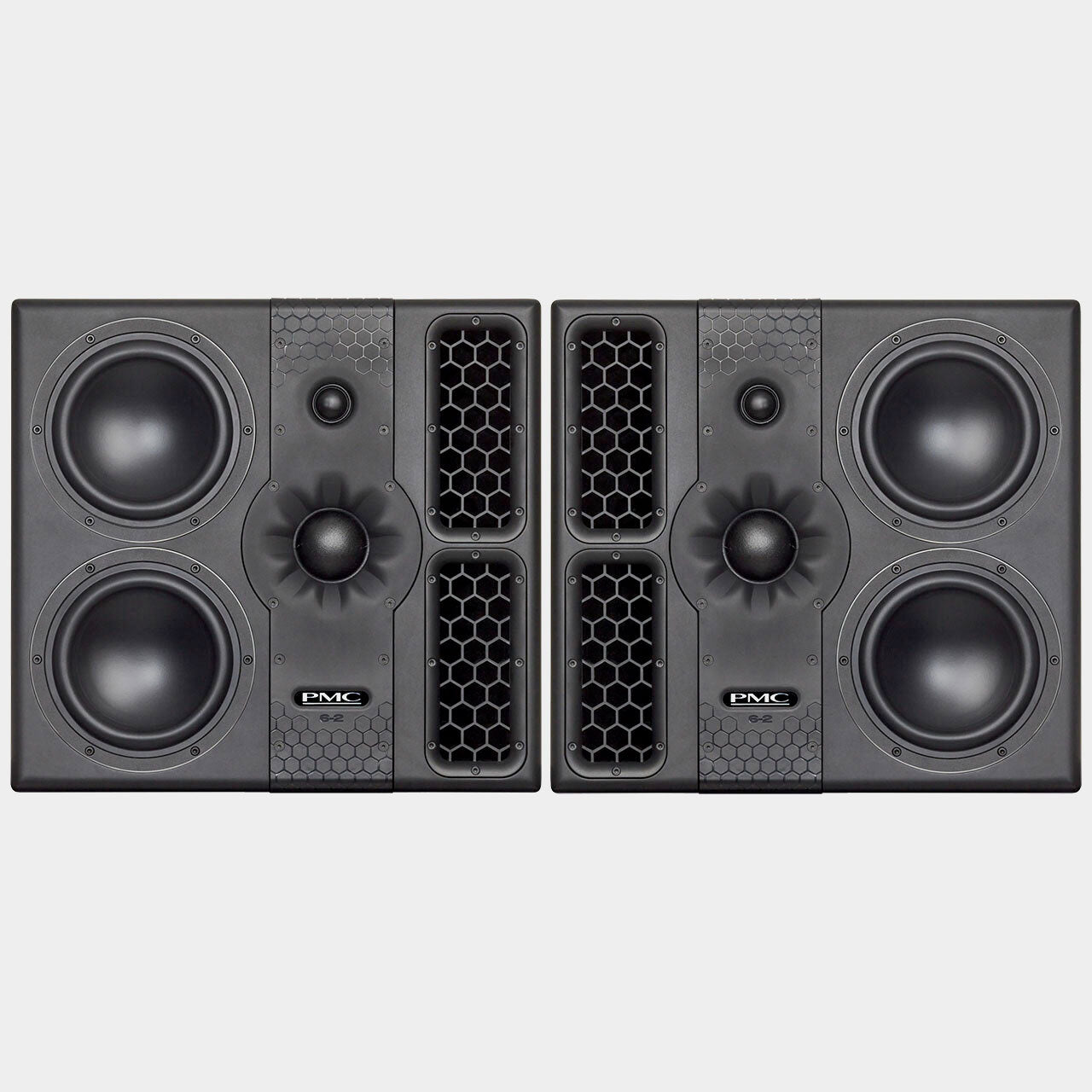

This system combines the PMC6-2’s unrivalled clarity and resolution with an active sub to form a perfectly integrated full-range monitoring system that is ideal for all high-end music production.

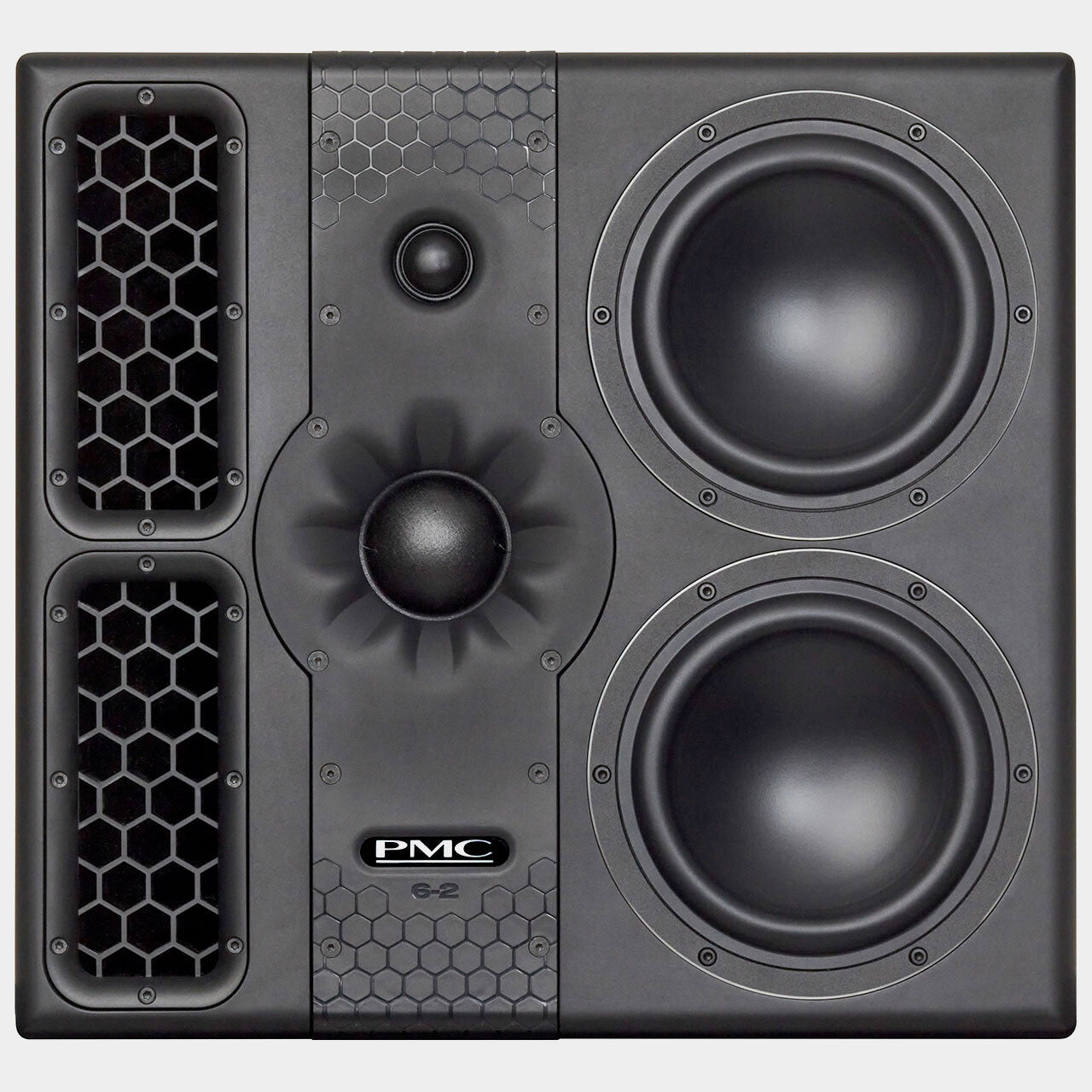

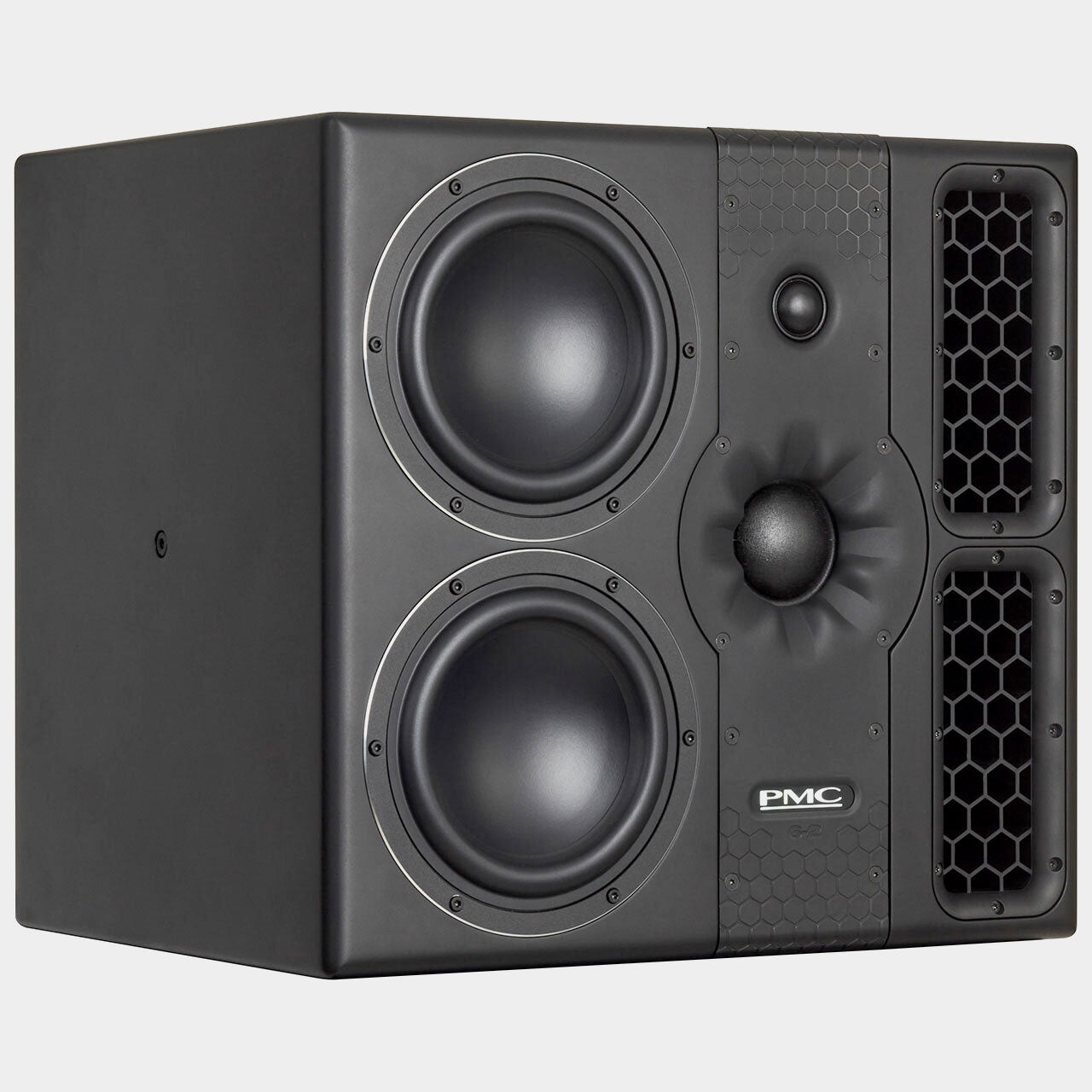

In the case of the PMC6-2, configuring it as an XBD system reinforces the bass output of the main speaker’s LF drivers, greatly increasing headroom and extending the bass down to 25Hz, creating a system with a sense of effortless capability.

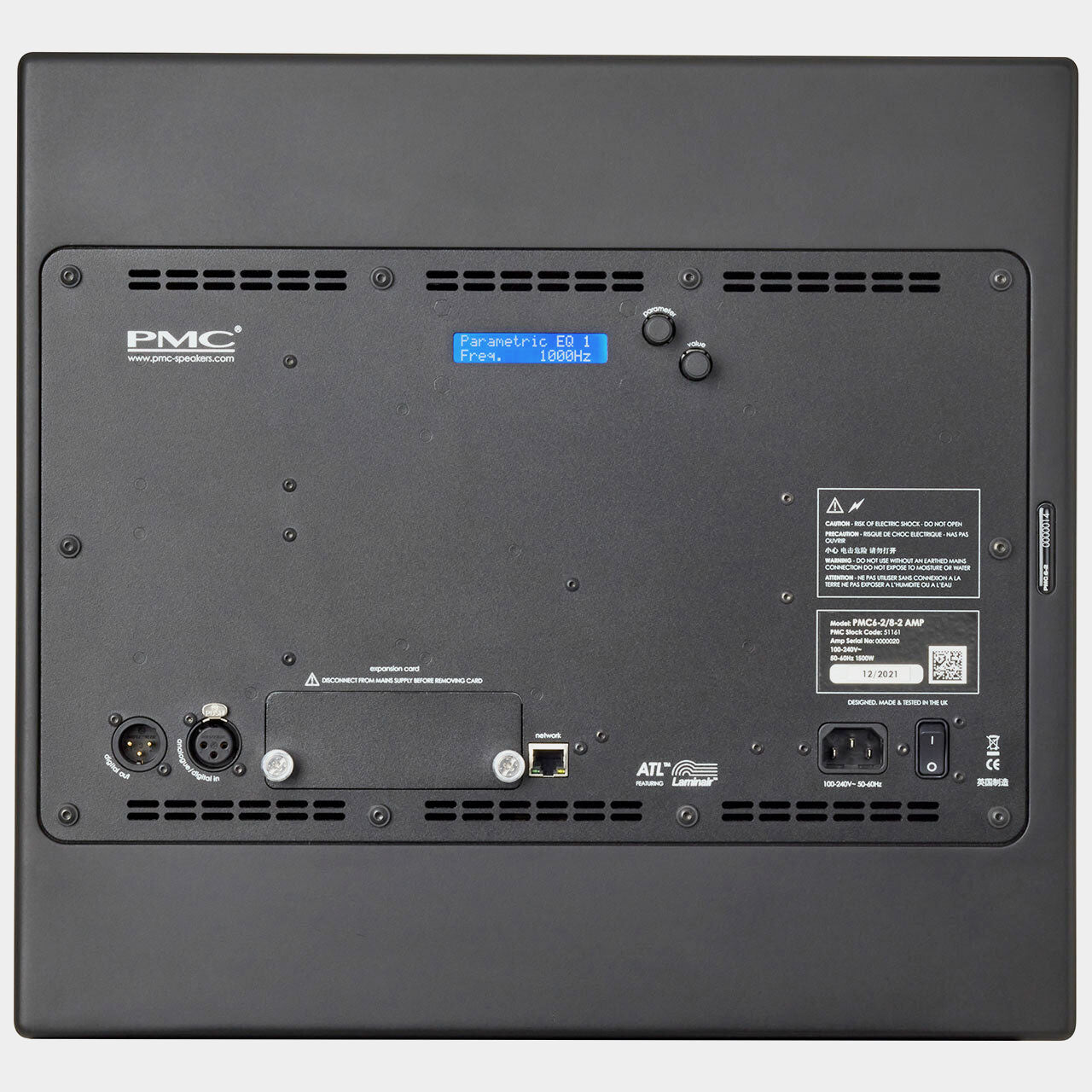

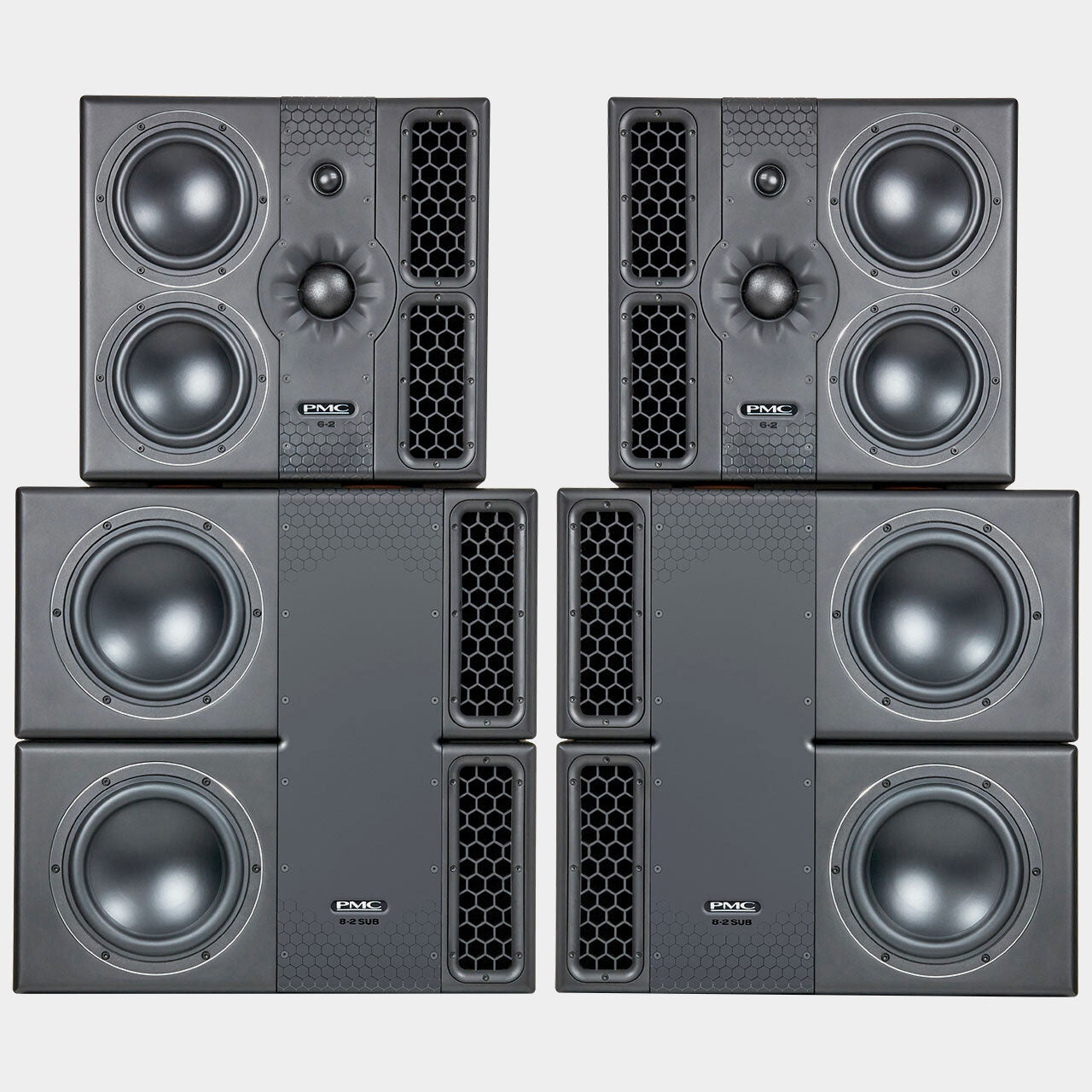

Configuring the PMC6-2 XBD system is simple; connect the input directly to the PMC6-2, and add an AES3 digital cable to carry the main monitor’s ‘through’ output down to the PMC8-2 SUB. The two cabinets can be connected either to a LAN or directly to each other via their network ports. When you select the dedicated ‘XBD’ mode the DSP seamlessly combines both units into a single, larger-scale monitor. Further detailed configuration can be carried out from the rear-panel controls or using the intuitive SoundAlign™ browser-based software via the LAN connection, where both speakers appear as a single PMC6-2 XBD unit when linked.

The PMC8 SUB can be used as a compact stand-alone subwoofer within conventional multichannel systems, or as an XBD cabinet, creating a full-range PMC6 XBD midfield monitor. When used in this way, the dedicated ‘XBD’ DSP mode marries the speakers and sub unit together, creating a coherent full-range system. Our subs are also perfectly suited to use in multi-channel and immersive systems, as our ATL™ bass-loading technology provides a gentler low-order LF roll-off than conventional ported cabinets, allowing a smoother, seamless integration between the height and surround channels and the sub.

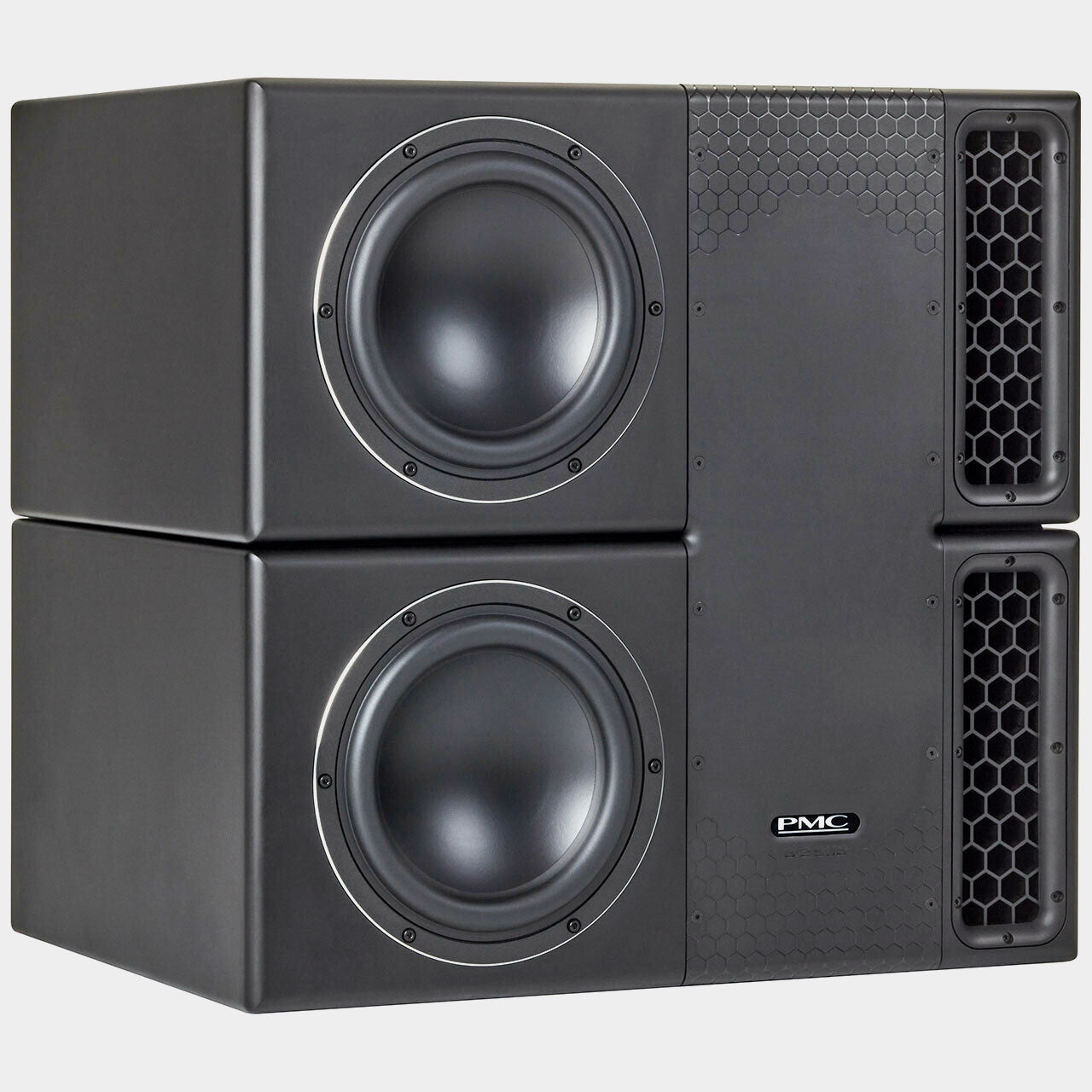

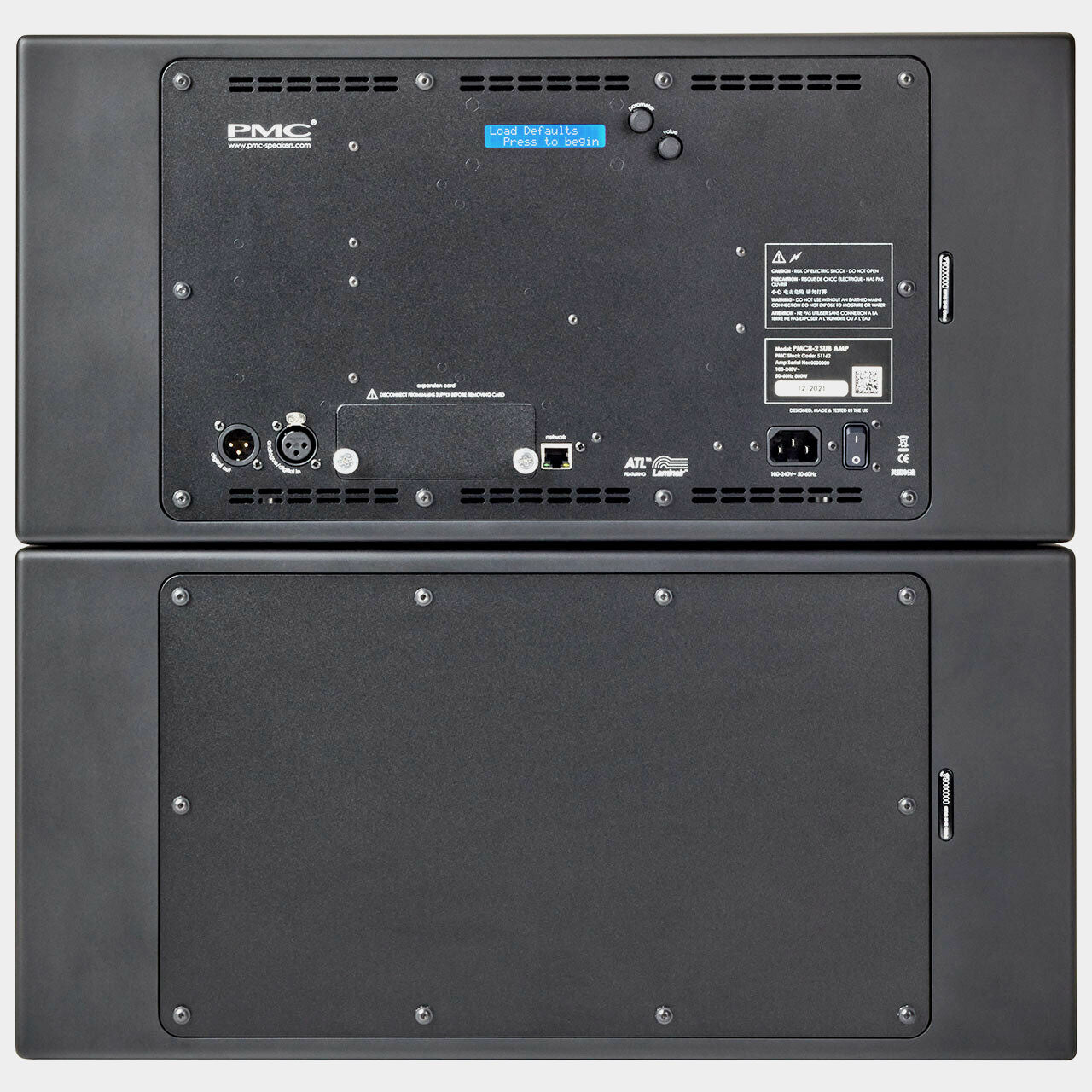

Featuring one custom eight-inch long-throw bass-driver, the PMC8 SUB is powered by a single 300W Class-D amplifier and controlled by the same powerful DSP engine as our other active models. DSP facilities include sophisticated room boundary equalisation options, parametric EQ, time delay, phase inversion, and the unique XBD mode, all configured via the loudspeaker’s rear panel or the browser-based SoundAlign™ software.
