Neve 4081 Digital Option Card

Name: Neve 4081 Digital Option Card
Brand: Neve
SKU: 4191
Price: 576.00 GBP
Availability: InStock

£576.00 inc VAT

£480.00ex VAT

SKU: 4191

AVAILABLE TO ORDER

Not currently in stock, but usually ships in 2–3 weeks. Need it quickly? Contact us and we’ll confirm the latest delivery estimate.

Quantity:

feefo 4.9/5 Verified customer reviews

Finance Available From £0.00 per month

Omni Capital Finance Calculator

Show figures for:

Cash price £0.00, deposit £0.00. Borrowing £0.00 over 0 months with a representative APR of 0.00% APR and a rate of interest of 0.00%, the monthly payments will be £0.00 and the total amount payable will be £0.00.

Deposit Percentage:

10%

10% 50%

Term:
Months

12m 24m 36m 48m

Estimated Monthly Payment:

£0.00

Price of Goods

£0.00

Deposit to Pay

£0.00

Loan Value

£0.00

Rate of Interest

0.00%

Total Amount Payable

£0.00

Total Interest Payable

£0.00

Please note that, due to calculations, your monthly repayment may differ very slightly from what you were expecting. Please check your monthly repayment figure before proceeding.

Checkout with finance

To apply for finance, please add the product to your cart, proceed through checkout and select "Omni Finance powered by Dopple" as your payment method. You will then be able to complete your application online.

Only available to UK residents over 18, subject to terms and conditions. Credit subject to status. Missed or late payments may result in additional fees or interest and will affect your credit file and your ability to obtain credit in the future.

Accepted payments

Product overview

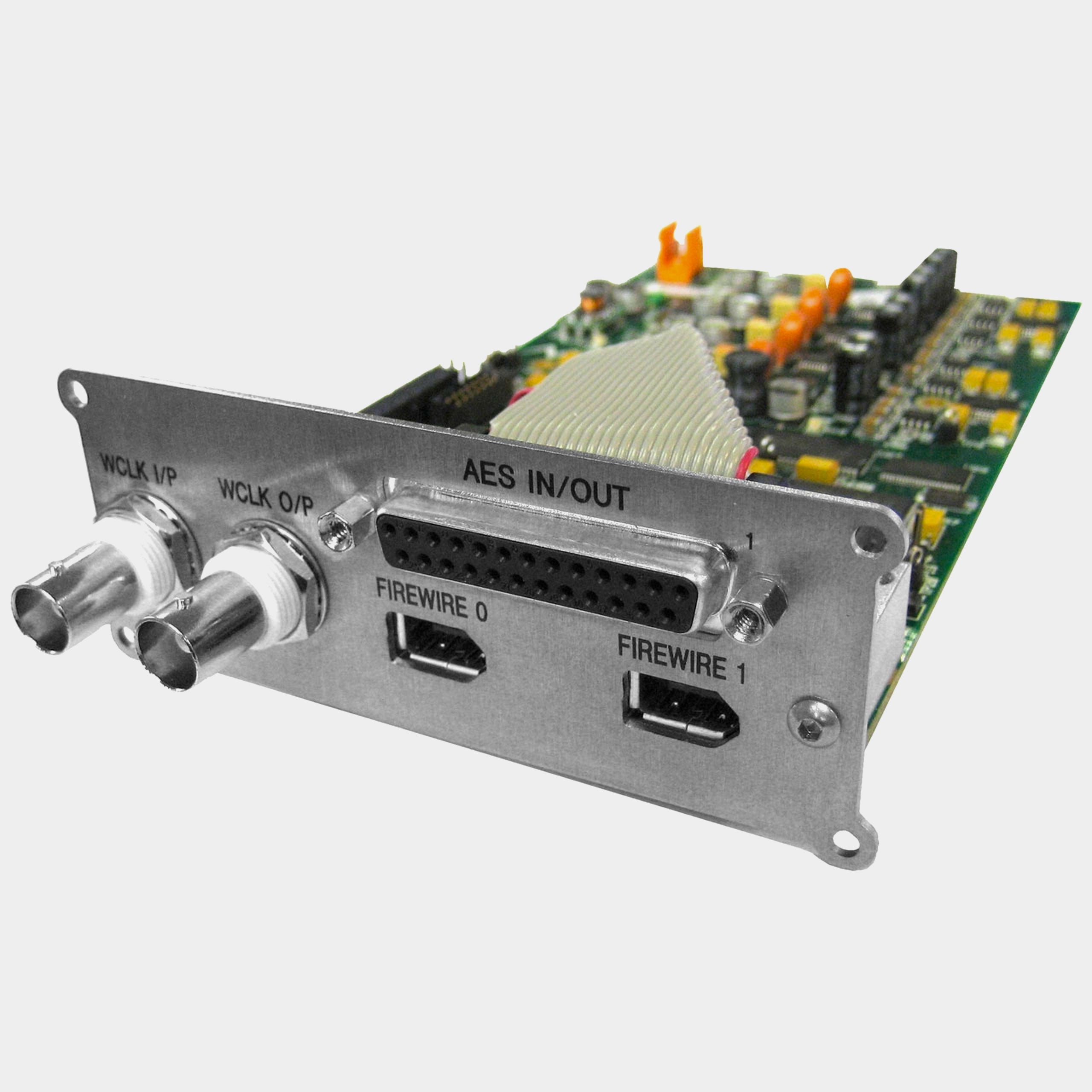

The 4081 ADC Card provides a FireWire/AES interface with four channels of A/D conversion to either AES or FireWire. An insert point is available before the A/D converter on each channel to allow external, analogue Outboard equipment to be switched into the signal path. Four channels of AES-to-analogue or FireWire-to-analogue conversion are also available.

FireWire interface for 4081, with AES conversion
The expansion board is fitted internally to a 4081 unit and has two modes of operation, determined by whether a FireWire connection is detected or not.

Technical specifications

Key specs

Mode 1 - Standalone (no FireWire detected): The 4 analogue outputs from the 4081 Mic Pre or Insert are mapped to the two stereo AES OUTPUTS. The two stereo AES INPUTS are mapped to the 4 analogue outputs – these are simply an AES to analogue convertor. The 4 analogue outputs are also available on the 25 way d-type on the back of the main 4081 unit. If no sync input is detected (either Wordclock or AES), then the expansion board runs on internal sync and the sample rate is selected by the UP/DOWN buttons on the front panel. If a valid sync input is detected, then the sample rate is automatically calculated and indicated on the front panel. External AES EBU cable lengths are limited to 100M.
Mode 2 – FireWire detected: Multiple 4081 units can be cascaded onto one FireWire stream, or starred back to the FireWire card. There is currently a limit in the driver of 4 units per FireWire stream. 4 units gives 16 IN and 16 OUT on a single DAW connection if using FireWire, but the available bandwidth allows 16 IN and 16 OUT at 192kHz. The first unit in the chain becomes the master, and provides the sync to the other 4081 units either via FireWire or Wordclock. Supports ASIO driver – the sample rate is set via the DAW software driver.

Warranty: 1 Year
