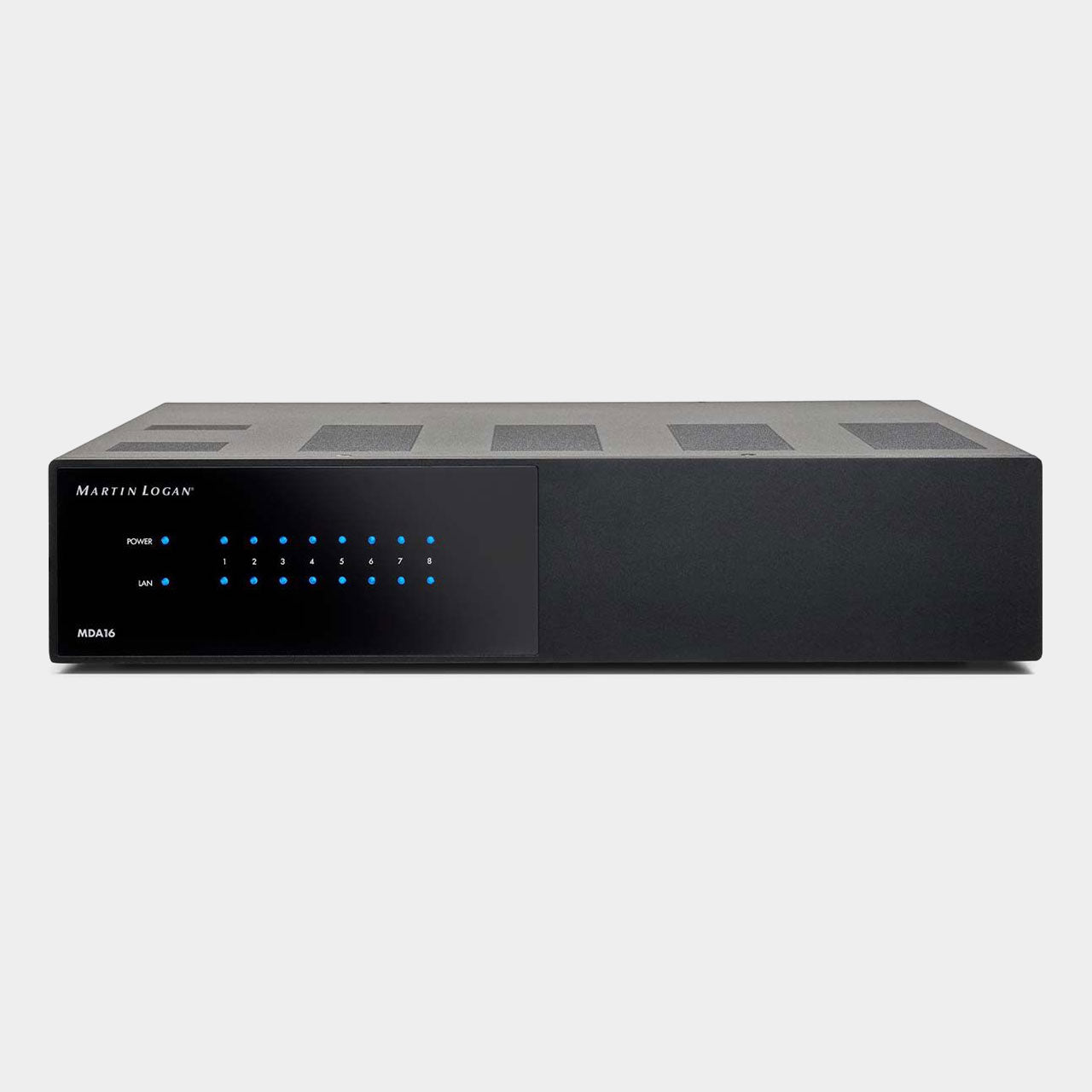

Martin Logan MDA16

MDAs are the most flexible and adaptive distribution solutions available today, delivering dramatic levels of performance where it matters—in the room.

With full matrix switching capabilities of analog and digital inputs, and independent room correction with ARC® Genesis in each zone, MDAs allow you to install robust audio solutions throughout a home or business. These unique technologies actually understand the unique acoustic signature of each listening space and correct deviations from an ideal response.

With an eye on preserving even the most subtle nuances of music, MDAs accept high-resolution PCM up to 24-bit/192kHz. MDAs will never hold back a compelling musical experience.

The MDA16 powers up to eight zones with 16 total channels at 60 Watts per channel into 8 Ohms (or 120 into 4 Ohms). Zones can also be bridged for a high output mode with 200 Watts per channel into 8 Ohms.

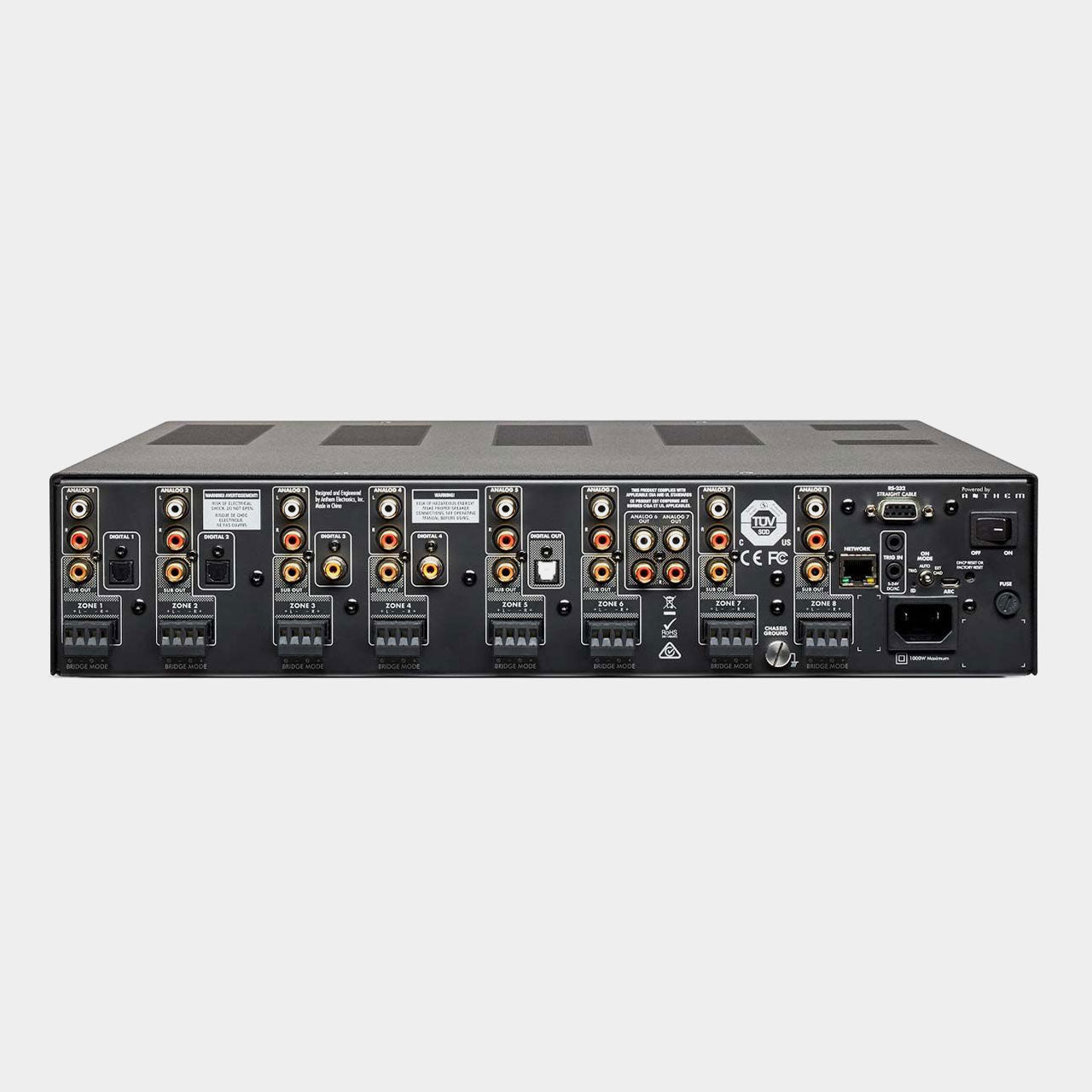

Digital Inputs, Digital Outputs

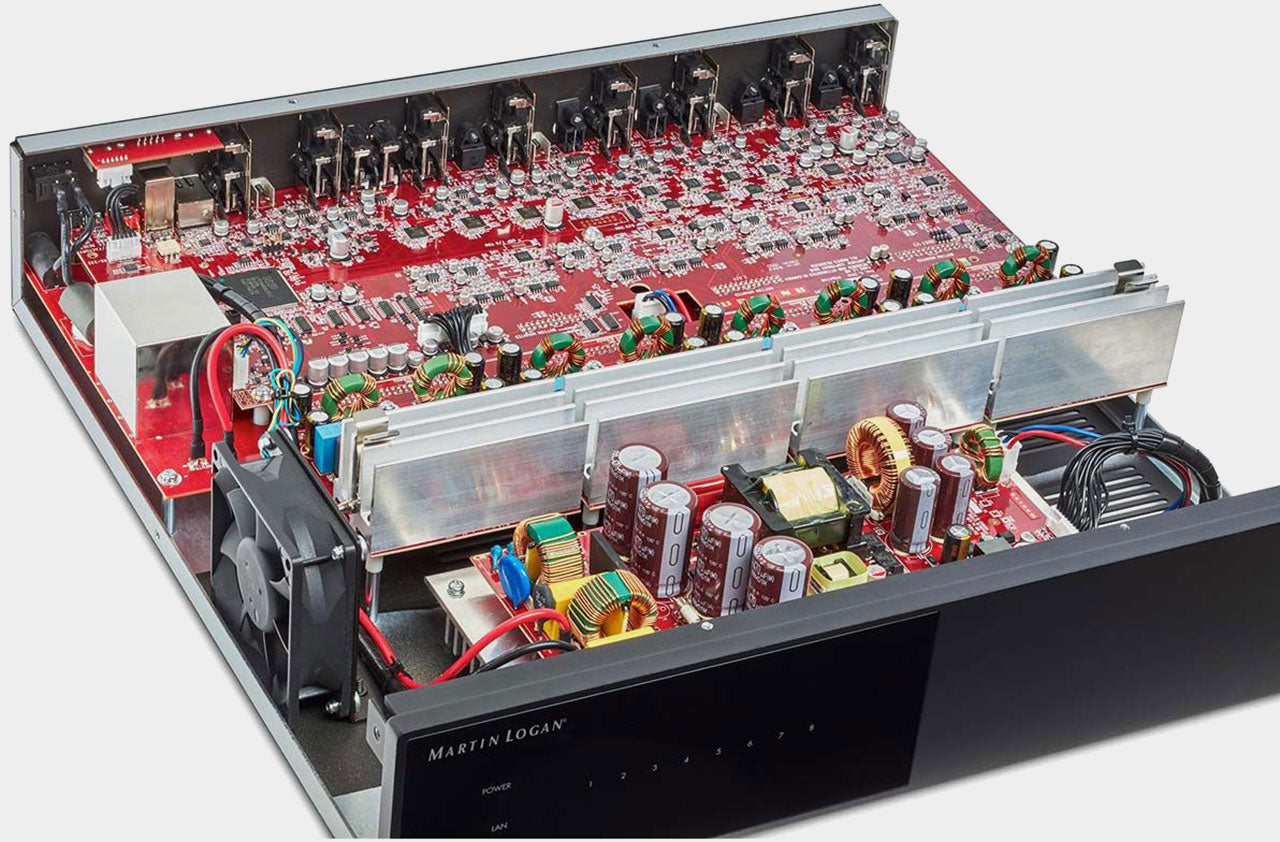

Fast, efficient Ultra-Class-D amplification is supported by proprietary Advanced Load Monitoring technology, delivering reliable performance under even the most demanding loads. Our high-efficiency design meets and exceeds global power-saving standards.

Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow daisy-chaining of multiple MDA units.

Analog/Digital Matrix Switching

Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.

Features

60 Watts (8 Ohms) / 120 Watts (4 Ohms) with all channels driven, or bridges to provide 200 Watts (8 Ohms).

8- or 16-channels of Ultra-Class-D amplification, each supported by Advanced Load Monitoring technology, delivers fast, reliable performance even under the most demanding loads.

24-bit/192kHz digital-to-analog converter (DAC) maintains the integrity of high-resolution source materials.

Customised pre-set DSP settings.

Separate zone-specific bass management and subwoofer integration via a passive (RCA) or active (powered by another zone in bridge mode) connection.

Bridging allows up to 200 Watts for high power applications such as subwoofers.

Digital switching output allows linking of digital inputs between multiple MDA.

Analog pass-through connections allow daisy chaining of multiple MDA.

Speaker terminal block connections accept up to 12 AWG, ideal for long speaker cable runs.

IP/RS232 capability ensures compatibility with leading home automation systems.

ON/OFF switched via IP/RS232, 12-Volt trigger, or audio sensing.

High-efficiency design meets global power saving standards. Secure professional rack-mount arms included.
