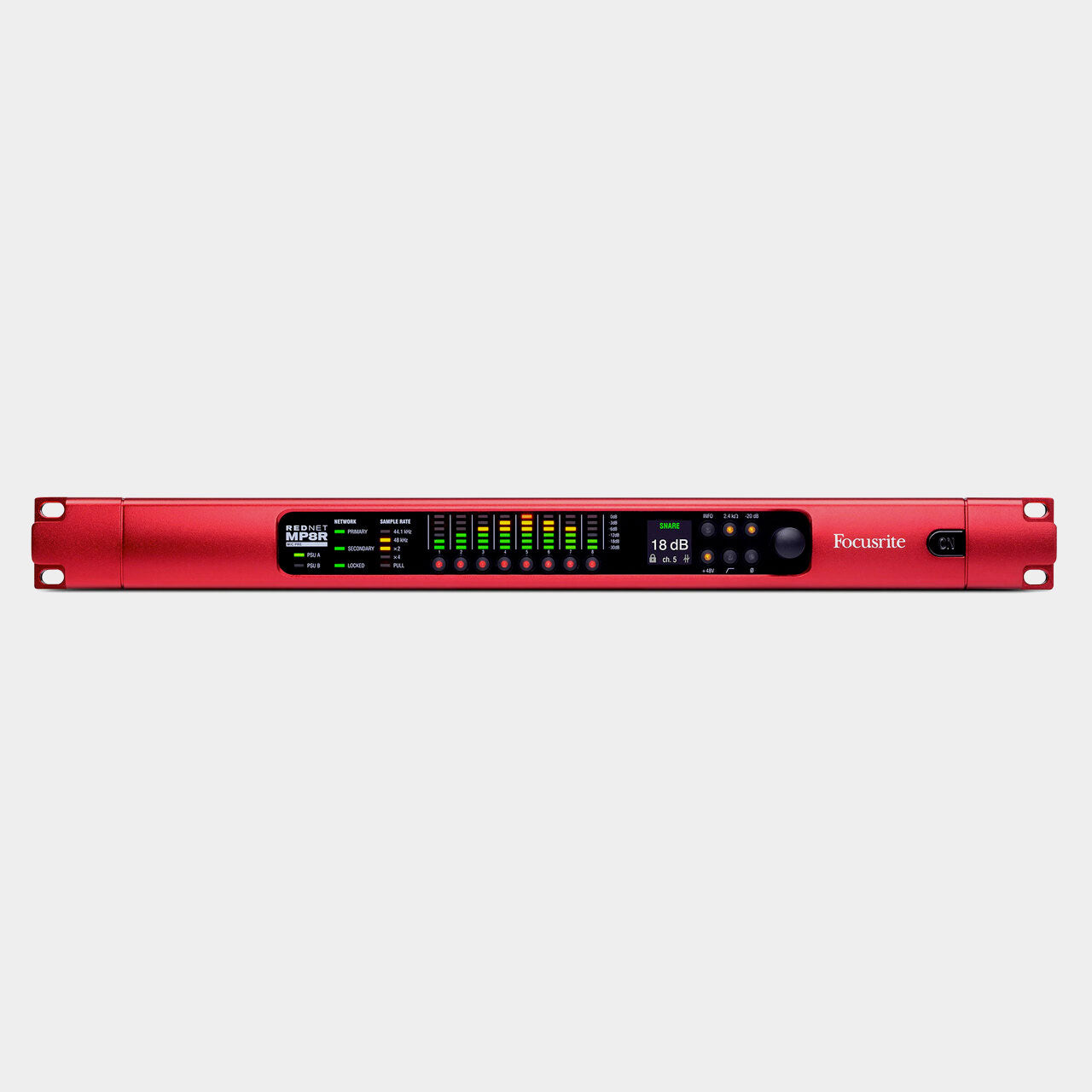

Focusrite RedNet MP8R

8-channel remote-controlled mic pre and A/D for Dante networks

RedNet MP8R is an 8-channel remote-controlled microphone preamplifi er and A/D for the Dante audio-over-IP network.

Developed from the RedNet 4 studio remote-controlled microphone preamp, and incorporating input from leading live sound practitioners during its development, the MP8R provides a wealth of features that make it particularly applicable to the live sound/recording and broadcast environments, and other workflows where reliability is paramount.

PSU and Ethernet redundancy

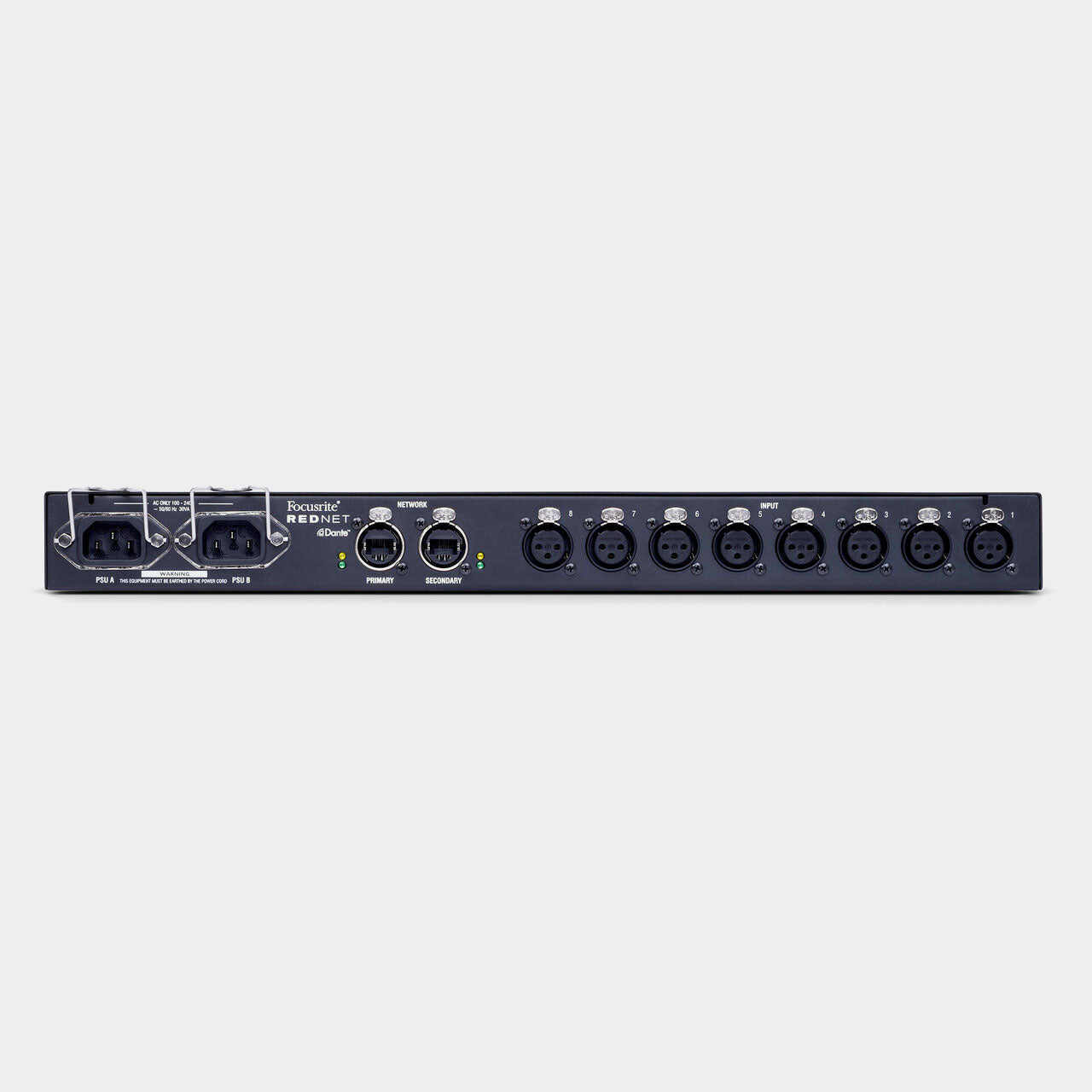

Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. The state of each power supply is indicated both remotely and on the front panel. The MP8R features a rugged, roadworthy exterior and high internal build quality. In addition, the unit offers a compact 1U rack-mount form factor.

Award-winning preamps

The MP8R preamps represent the latest iteration of Focusrite's award-winning mic pre designs, with a pedigree that stretches back to the original Focusrite products of the mid-1980s. Fully keeping pace with the latest developments in audio technology, today's Focusrite preamps offer lower noise, great dynamic range and better Common Mode Rejection than ever before.

The preamps in the MP8R offer an increased maximum input level of 28dBu, plus a 20dB pad, high-pass filter, polarity inversion and phantom power. Each preamp has a dual input impedance of 10k or 2.4kohms, allowing flexibility when running multiple mic pres in parallel.

DSP gain tracking

The MP8R includes a sophisticated gain tracking ability, appearing as a 16-channel device on the network, the fi rst eight channels being direct preamp feeds, while the remaining eight are automatically DSP level-compensated outputs sourced from the first eight. This architecture allows "splits" (such as monitor/FOH) to be set up in the digital domain, permitting one engineer to control the analogue mic gain while a second receives an output level that is constant irrespective of the analogue mic gain setting.

Local or remote control

The preamps may be controlled remotely in a variety of ways, including via the RedNet Control software package, Pro Tools and MIDI, and OCA (Open Control Architecture - supported via 2015 firmware upgrade); in addition, the preamps can be operated from the MP8R front panel, where 6-segment level metering, numeric gain display and other indicators provide comprehensive monitoring of the unit's operation.

High-precision conversion

Following the mic pres are eight channels of Focusrite's legendary high-precision A/D converters, operating at up to 192kHz/24-bit with minimum latency and offering class-leading dynamic range and overall performance.

Full Dante interoperability

Like the entire RedNet product range, the MP8R interoperates seamlessly and fully with any other Dante audio-over-IP network components and infrastructure. Patching and interconnection can be managed with the Dante control software.
