Cranborne Audio 500ADAT

Expand your studio. Expand your sound.

500ADAT combines cutting-edge digital performance with tried-and-tested ADAT. Utilising high-end converters with 121dB (unweighted) signal-to-noise ratio and ultra-low jitter (0.5 picoseconds) internal clocking ensures that every subtle nuance of your analogue signal is captured perfectly and sent via ADAT to an interface of your choice.

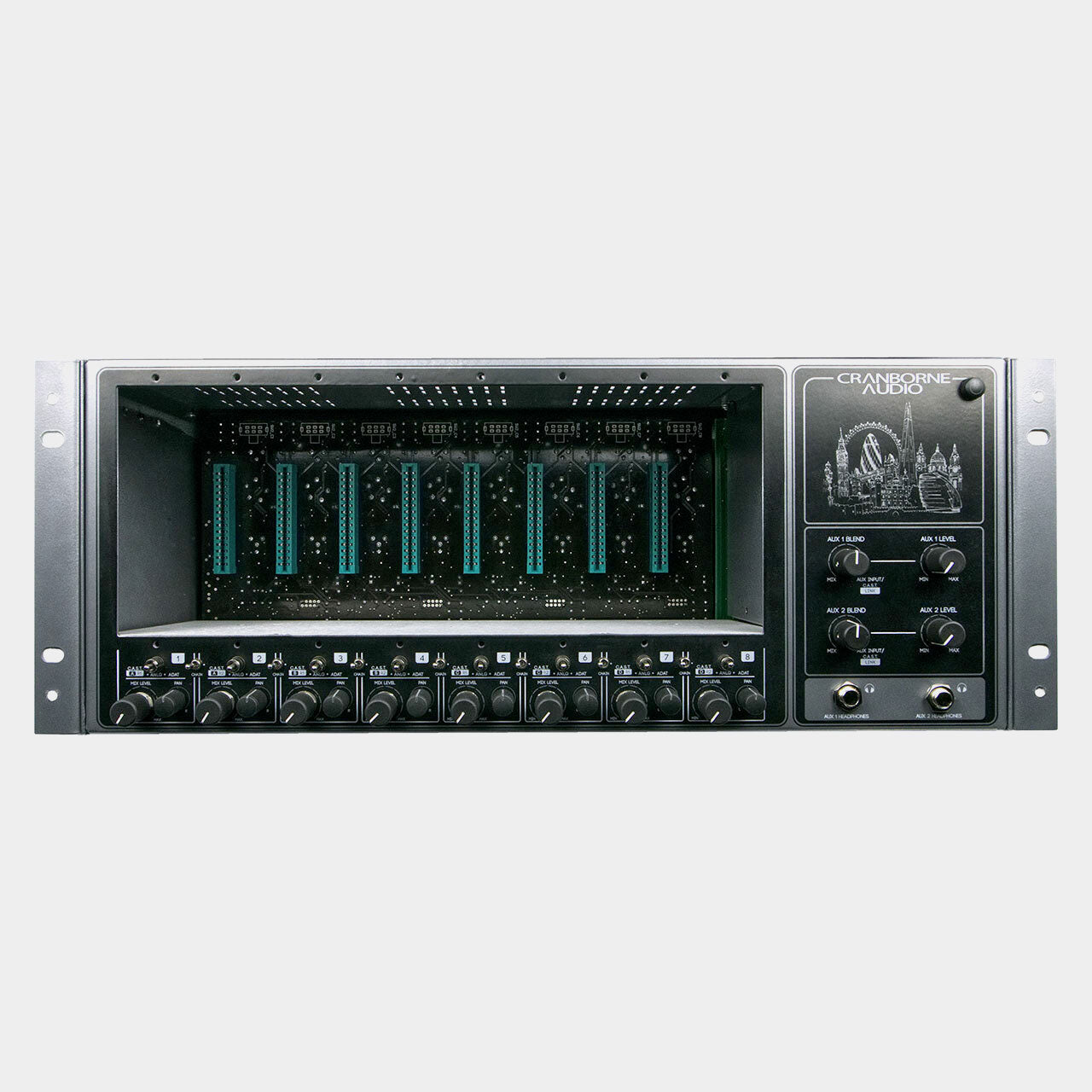

500ADAT combines a high-current 8-slot 500 series chassis with digital conversion and ADAT - a powerful and accessible way to get your favourite analogue 500 series preamps, compressors, and EQs into your tracking and mixing digital workflow.

ADAT, SMUX II/IV Expander

Transform your ADAT-equipped audio interface into an analogue powerhouse by adding up to 8 channels of expansion at up to 96kHz or 4 channels of expansion at 192kHz - whilst utilising the 500 series standard.

Zero-Latency Artist Mixer

Move away from clunky software mixers and get your hands back onto the mix by using 500ADAT's two aux busses to create pristine-sounding analogue artist mixes that can be blended with DAW playback, and sent to your musicians with zero-latency.

Discrete Summing Mixer

Give your mix the final bit of analogue character and send instrument groups and stems back-through your 500 series modules and into the discrete analogue summing mixer to be sent back into your DAW.

World-Class Digital Performance

To create a "studio in a box" where your favourite 500 series modules could shine on your digital recordings, it was critical to ensure our digital conversion and analogue processing is best-in-class. We squeezed every possible .1dB of performance out of 500ADAT to achieve digital and analogue performance that ensures that the only thing colouring your recordings are mic placements and mix decisions.

AD/DA Performance

The implementation of our ADCs result in 121dB (unweighted) signal-to-noise ratio and - 112dB THD+N whilst our DACs achieve 127dB (unweighted) signal-to-noise and -115dB THD+N. Our analogue design stages operate at between 0.0002-0.0004% THD+N to ensure that the only factors influencing the converters' dynamic range are the converters themselves and not the supporting analogue circuity.

Master Reference-Quality Clock

A/D and D/A numbers don't tell the whole story. Converters are only as good as the clocks that are governing them. Our internal digital clock reaches atomic-clock level accuracy, for master reference-quality with < 0.5 picoseconds of jitter. Our designs feature isolated analogue and digital ground planes and power rails so that our digital elements receive accurate clocks and our analogue signals are noise- and distortion-free.

Configurable Front-End

Utilising the 500 Series standard as a your own front-end puts you back in control of exactly how audio is received and processed before being sent to the DAW. Mix and match to find the best preamp combinations during recording, and then swap them out with EQ's and comps when it's time to mix.

Source Select

Each 500 series slot has 3 source select options; Analogue, CAST, and ADAT. Selecting ADAT allows the 500 series module to pickup audio incoming via the ADAT stream, process it in analogue, and then send it back into the ADAT outputs for recording. There's also a Chain switch that allows you to create custom channel strips of your favourite modules.

Tons Of I/O

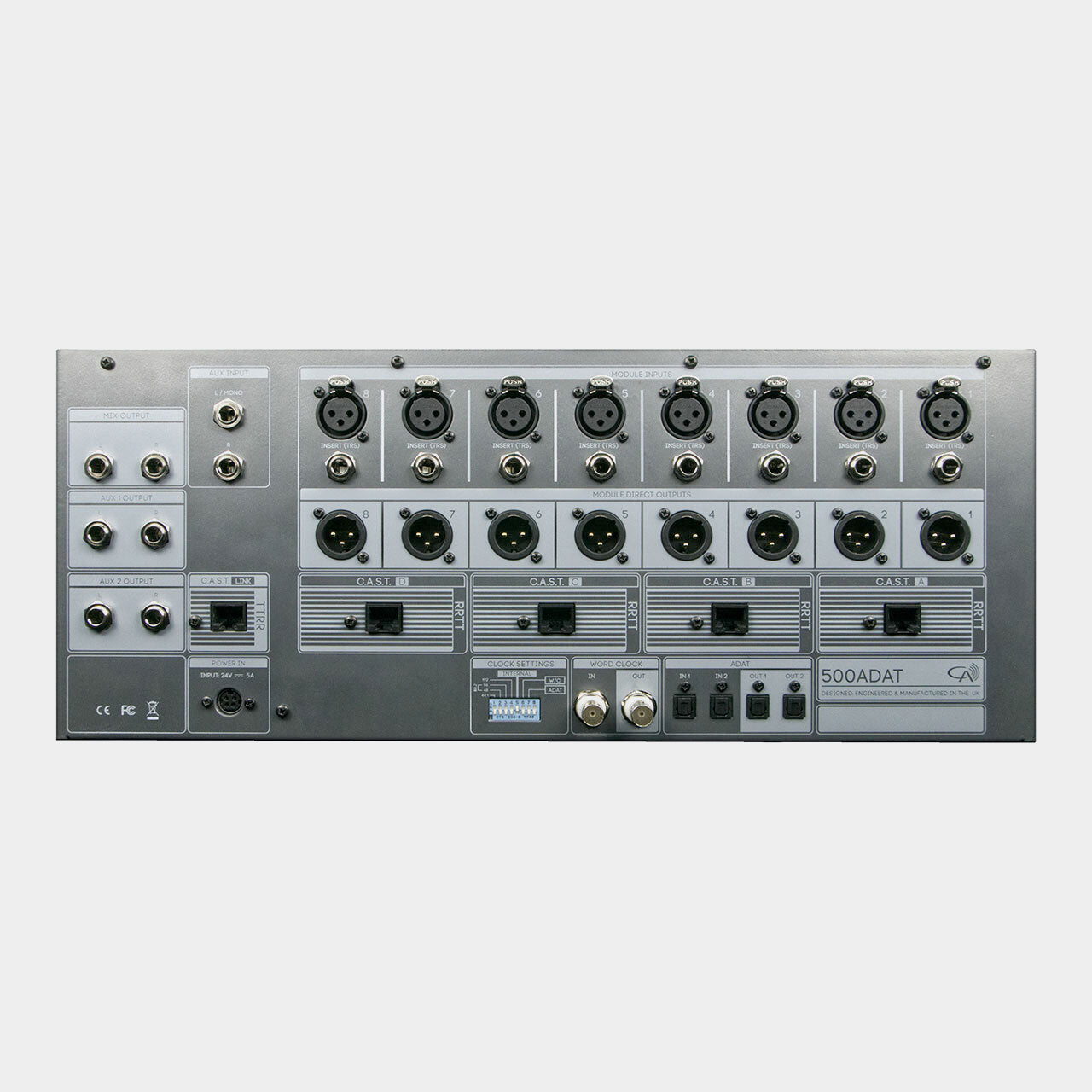

An abundance of Inputs and outputs allows 500ADAT to integrate with a number of hardware components around your studio. Combine 500ADAT's analogue performance with your own converters or patch outboard gear into each 500 series slot using dedicated TRS insert jacks. Every mix bus has a dedicated output too.
